Name: Onga JS45 JS Series Pressure Pump | Dowdens Pumping & Water Treatment
SKU: JS45
Availability: OutOfStock

Description

Onga JS45 JS Series Pressure Pump

Onga’s jet-assisted The new JS range of household pressure pumps feature a strong stainless steel pump casing with precision moulded jet, venturi and impeller for efficiency and great performance under high suction lift applications.

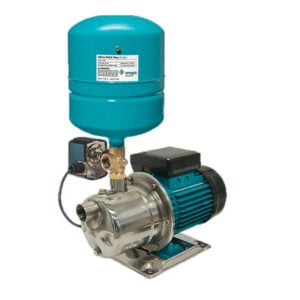

The new Italian made JS series is now mounted on a stable, high quality stainless steel base for protection from corrosion. With 3 models in the range, the JS is also available with a Presscontrol or Pressure Switch and Tank making a perfect household water pressure system.

Applications

The JS Series pressure system is ideal for installations with below ground water source, domestic water supply systems with continuous or intermittent duty. It is perfect for small farms, gardening irrigation and for all other general water transfer requirements.

Enclosed fan-cooled motor
Protection rating IP 44
Insulation class F
Singe phase power supply with permanently activated capacitor
Thermal protection incorporated in motor winding
Continuous duty

ONGA JS45 JS SERIES PRESSURE PUMP
COMPONENT	MATERIAL
PUMP BODY	Stainless steel X5 CrNi 1810 (AISI 304)
MOTOR CASING	Die-cast aluminium
IMPELLER	Technopolymer with stainless steel shim ring
DIFFUSER MONO BLOCK GROUP VENTURI TUBE-NOZZLE	Technopolymer
SHAFT	Stainless steel X 12 CrNiS 1809 (AISI 416)
MECHANICAL SEAL	Graphite
COUNTERFACE	Ceramic
SEAL HOLDER PLATE	Technopolymer (JS45 and JS60) Stainless steel X5 CrNi 1810 ( AISI 304) JS90
GASKETS	NBR 70 Shore
