Grundfos CU 200 SQ Flex Control Unit

SKU: CU 200

Description

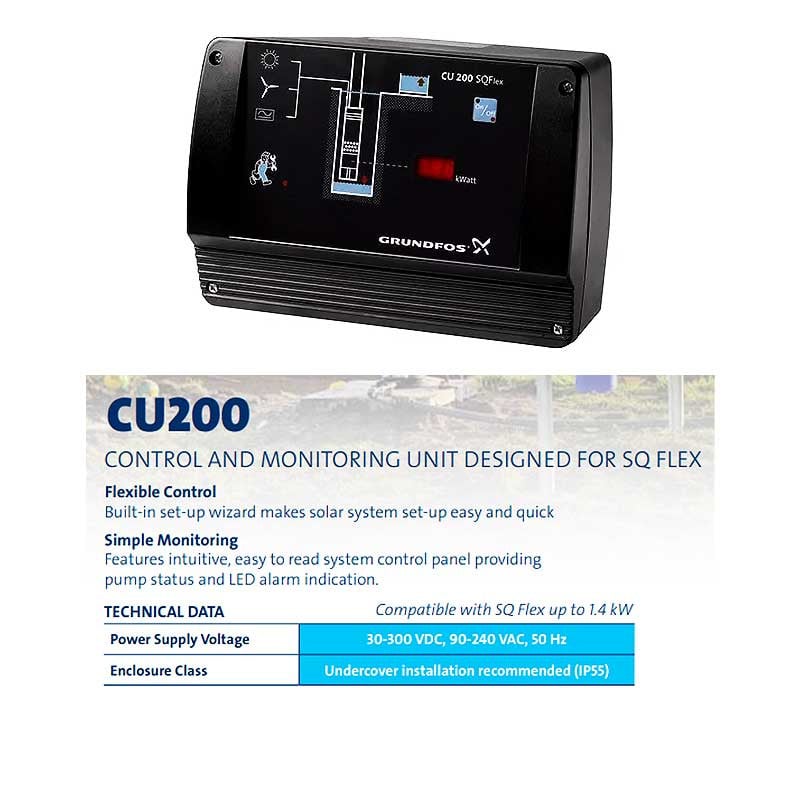

Control and Monitoring Unit Designed for SQ Flex

Flexible Control

  • Built-in set-up wizard makes solar system set-up easy and quick

Simple Monitoring

  • Features intuitive, easy to read system control panel providing pump status and LED alarm indication.

Suitable for:

  • Controls & Digital Groundwater Management
  • Solar Controls & Digital Water Management
  • Solar Water Treatment Fertigation & Dosing

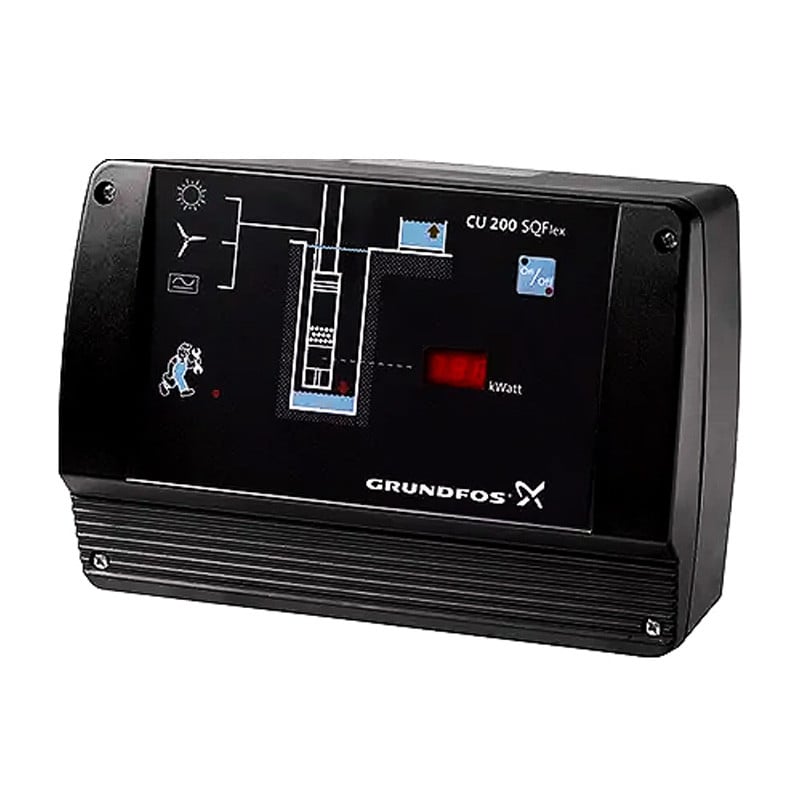

The CU 200 control unit is a combined status, control and communication unit especially developed for the SQFlex system. Furthermore, the CU 200 enables connection of a level switch.

The CU 200 incorporates cable entries for:

  • power supply connection,
  • pump connection,
  • earth connection,
  • level switch connection.

Communication between the CU 200 and the pump takes place via the pump power supply cable. This is called mains borne signalling (or Power Line Communication), and this principle means that no extra cables between the CU 200 and the pump are required. It is possible to start, stop and reset the pump by means of the on/off button.

The CU 200 control unit offers:

  • System monitoring
  • Alarm indication.

The following indications allow the operation of the pump to be monitored:

  • Water reservoir is full (level switch)
  • Pump is running
  • Input power.

The CU 200 offers the following alarm indications:

  • Dry running
  • Service needed in case of:
    • no contact to pump
    • overvoltage
    • overtemperature
    • overload
  • Insufficient energy supply

In addition, the CU 200 shows the symbols of the energy supply options.

Technical
Approvals: CE

Installation

Range of ambient temperature: 30 .. 50 °C
Relative humidity: 95 %

Electrical Data

Power consumption: 5 W
Rated voltage ac: 1 x 90-240 V
Rated voltage dc: 30-300 V
Enclosure class (IEC 34-5): IP55
