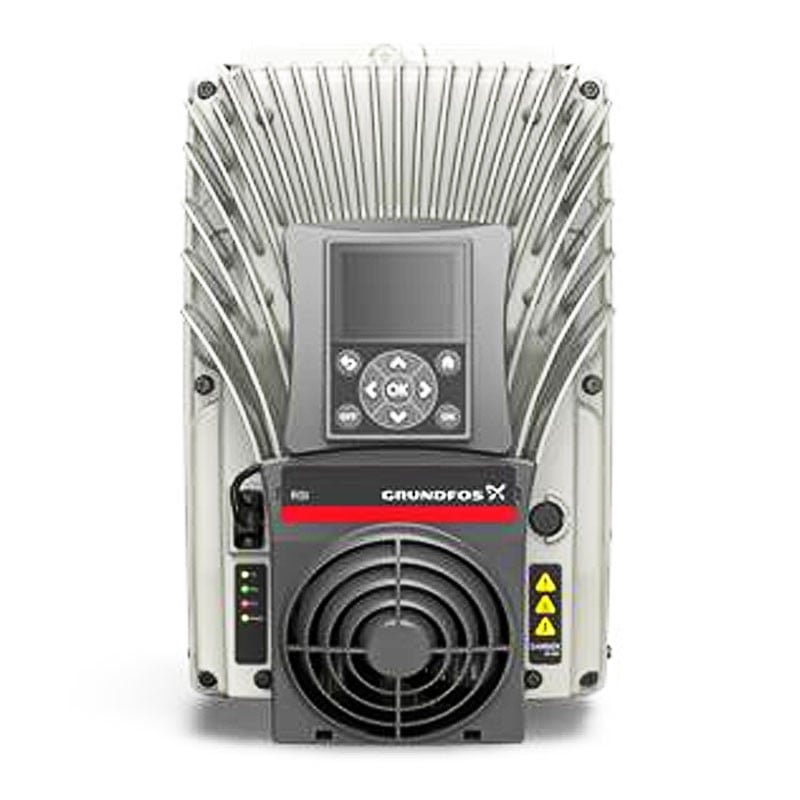

Grundfos RSI 3×380-440V 2.2kW Solar Inverter

SKU: RSI 3x380-440V-2.2

Description

Renewable Solar Inverter is an off-grid solar inverter to expand the solar pumping systems family. RSI work with submersible, multistage and single-stage pumps

Suitable for.

  • Controls & Digital Groundwater Management
  • Solar water solutions
  • Solar Controls & Digital Water Management
  • Solar Water Treatment Fertigation & Dosing
  • Community water supply

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

  • 3-phase 208V, 380V or 440V
  • Quick setup wizard
  • Preconfigured inputs
  • Build-in MPPT (Maximum power point tracking)
  • AC and DC power source compatible
  • Solar solution for up to 250kW

RSI offers the following inputs and output:

  • RS-485 Modbus RTU/TCP
  • 6 Digital inputs, preconfigured for solar application
  • 2 Signal relays, RUN/FAULT
TECHNICAL DATA
Approvals: CE
INSTALLATION DATA
Range of ambient temperature: -10 .. 60 °C
Relative humidity: 100 %
ELECTRICAL DATA
Rated power - P2: 2.2 kW
Mains frequency: 50 / 60 Hz
Rated voltage: 3 x 380 - 440 V
Enclosure class (IEC 34-5): IP66
Rated voltage output AC: 380 V
Voltage input DC: 800 V
Rated current output AC: 6 A
Udc: 400 V
