Name: Onga JMP100 Pressure Pump | Dowdens Pumping & Water Treatment
SKU: JMP100
Availability: OutOfStock

Description

Onga JMP1000 JM Series Pressure Pump

Onga’s jet-assisted Homemaster pumps are designed for households where reliability, efficiency and ease of installation are important. The JM Series is an economical household pressure system incorporating the high performance and reliability features typical of Onga. The suction inlet is high on the pump body, enhancing self-priming and air handling ability, while the totally enclosed fan-cooled motor gives years of quiet and reliable operation.

Applications

Domestic pressure system (with presscontrol), water transfer, irrigation and garden supply

Moulded casing provides superior protection against corrosion
Precision moulded internals for high efficiency and durability

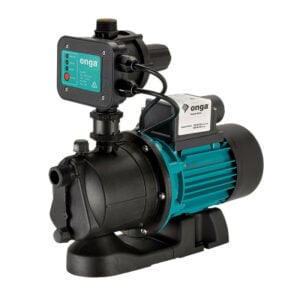

Coupled with a Presscontrol this becomes a reliable automatic pressure system with dry run protection
Excellent priming capabilities
Suction lift to 7.6 m
Inbuilt thermal overload
Max. head – 38 mMax. flow – 44 lpm

Technical Information	JM	JS
Inlet Connection	1”BSP Male	1”BSP Female
Outlet Connection	1”BSP Male	1”BSP Female
Power Supply	230V	230V
Voltage Limits (+/- 10%)	207-253V	207-253V
Impeller (s)	Technopolymer	Technopolymer
Pump Case	Polypropylene	Stainless Steel
Pump Shaft	Stainless Steel	Stainless Steel
Mechanical Seal	Carbon/Ceramic	Carbon/Ceramic
Motor	TEFC IP44	TEFC IP44
Maximum Water Temp ( C)	40	50
Ambient Temp Range ( C)	1-50	1-50
