Onga has a vast range of fire fighting pumps to accommodate your requirements. The twin stage fire fighting pump provides higher pressure, allowing you to fight fires from a safer distance.
Often getting power to a site near a bore, creek, river or dam is difficult or even impossible. Available in a both petrol (Honda) and diesel (Yanmar), recoil and electric start models.

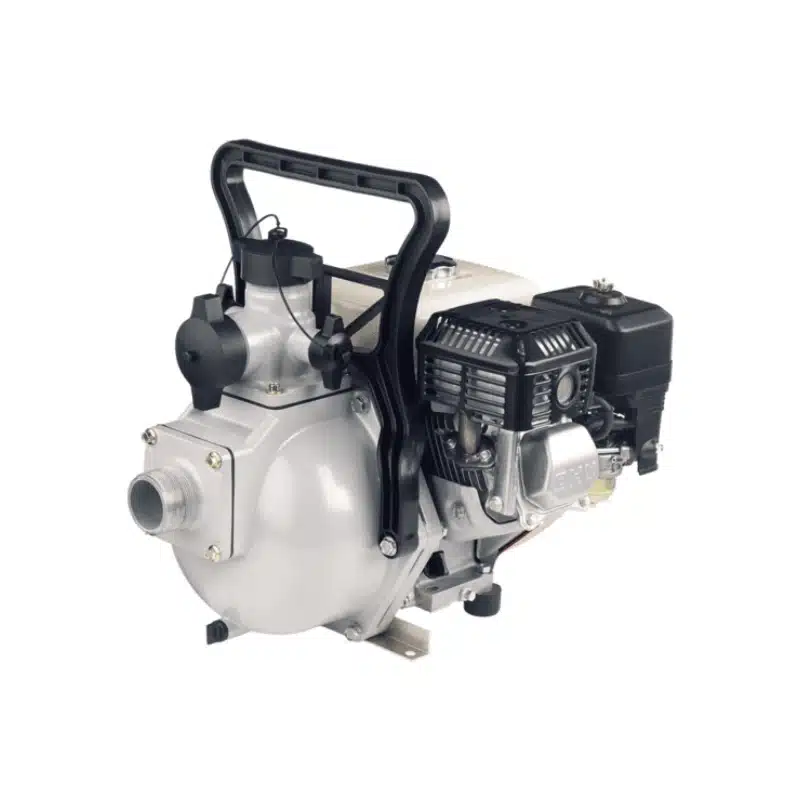

Horizontal, single-stage or twin-stage, surface mounted centrifugal pump with closed impeller/s for pumping debris free water coupled to a Honda GX160, GX200 or GX270 engine.
Suitable for pumping clean non-aggressive liquids without solids or fibres in
suspension.
For liquids outside of this range please consult your local Onga office for product suitability. Viton seal kit available as replacement service part.
| FLUID WATER | |
|---|---|
| Maximum water temperature | 55°C |
| Minimum water temperature | 1°C |
| Maximum ambient temperature | 40°C |
| Maximum casing pressure | 1300kPa |
| Please note: Engine performance greatly reduced with increased ambient temperature and/or altitude, clarify with Engine Manufacturer. | |
| BLAZEMASTER TWIN STAGE – HONDA | |||||
|---|---|---|---|---|---|
| MODEL | HP NOMINAL | ENGINE MODEL | SUCTION | DISCHARGE | OPTIONS |
| BM55H | 5.5 | GX160 | 1.5” | 1″, 1″, 1.5″ | R |
| BM65H | 6.5 | GX200 | 2.0” | 1″, 1″, 2″ | ES – R |
| BM90H | 9 | GX270 | 2.0” | 1″, 1″, 2″ | ES |
| ENGINE DATA | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TYPE | ENGINE | MODEL | DISPLACEMENT CC RPM | CONTINUOUS DUTY | FUEL TANK CAPACITY | FUEL | FUEL CONSUMPTION @ 3600 RPM | RECOMMENDED OIL TYPE | OIL CAPACITY |
| B55H | Honda | GX160 | 163 | 3000 RPM | 3.1 litres | Unleaded | 1.4 litres/hour | 10W/30 API SG | 0.6 litres |
| B65H | Honda | GX200 | 196 | 3000 RPM | 3.1 litres | Unleaded | 1.7 litres/hour | 10W/30 API SG | 0.6 litres |
| B90H | Honda | GX270 | 270 | 3000 RPM | 5.3 litres | Unleaded | 2.5 litres/hour | 10W/30 API SG | 1.1 litres |
| BM55H | Honda | GX160 | 163 | 3000 RPM | 3.1 litres | Unleaded | 1.4 litres/hour | 10W/30 API SG | 0.6 litres |
| BM65H | Honda | GX200 | 196 | 3000 RPM | 3.1 litres | Unleaded | 1.7 litres/hour | 10W/30 API SG | 0.6 litres |
| BM90H | Honda | GX270 | 270 | 3000 RPM | 5.3 litres | Unleaded | 2.5 litres/hour | 10W/30 API SG | 1.1 litres |

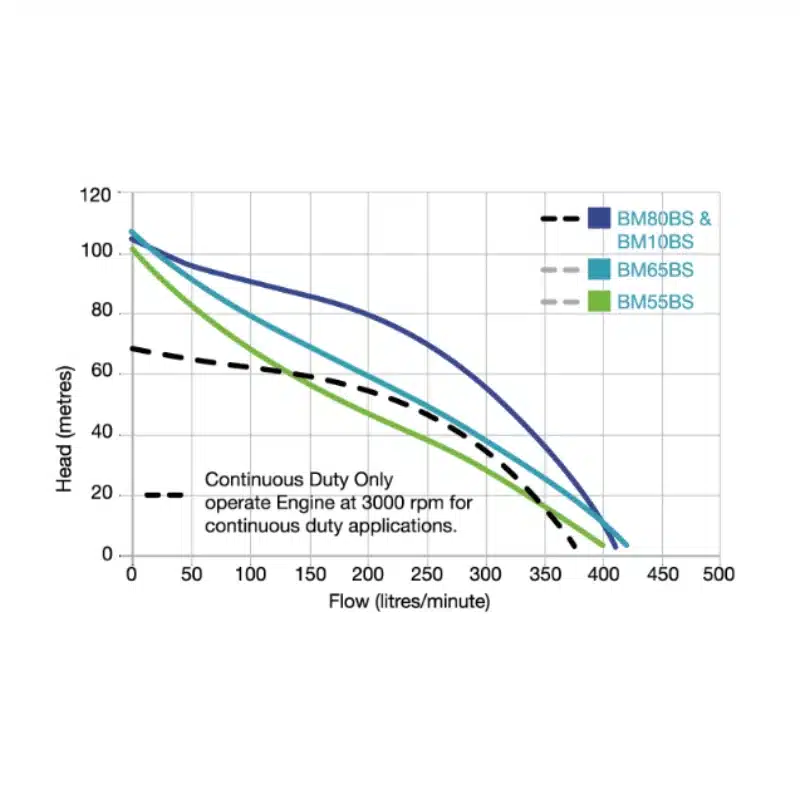

| PERFORMANCE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYPE | P/No | DELIVERY HEAD [m] | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| B55H | B55H | Capacity[litres per minute] | 623 | 507 | 396 | 281 | 170 | 40 | – | – | – | – |
| B65H | B65H | Capacity[litres per minute] | 680 | 585 | 484 | 360 | 232 | 80 | – | – | – | – |
| B90H | B90H | Capacity[litres per minute] | 687 | 617 | 525 | 428 | 310 | 140 | – | – | – | – |
| BM55H | BM55H | Capacity[litres per minute] | 420 | 332 | 280 | 242 | 183 | 153 | 104 | 71 | 32 | 8 |
| BM65H | BM65H | Capacity[litres per minute] | 420 | 373 | 322 | 281 | 229 | 182 | 133 | 93 | 46 | 13 |
| BM90H | BM90H | Capacity[litres per minute] | – | 398 | 368 | 344 | 311 | 277 | 242 | 192 | 122 | 28 |
| PUMP CONSTRUCTION MATERIALS | |
|---|---|
| COMPONENT | MATERIAL |
| Pump casing | Powder coated Aluminium |
| Impeller/s | 30% Glass Filled Nylon |
| Diffuser | Aluminium |
| Priming/discharge caps | Glass Filled Nylon |
| Seal flexible bellows | Nitrile |
| Seal stationary face | Ceramic |
| Seal rotating face | Carbon |
| Seal spring | Stainless Steel |
| Motor shaft | Mild Steel |
| O‘Rings | Nitrile |

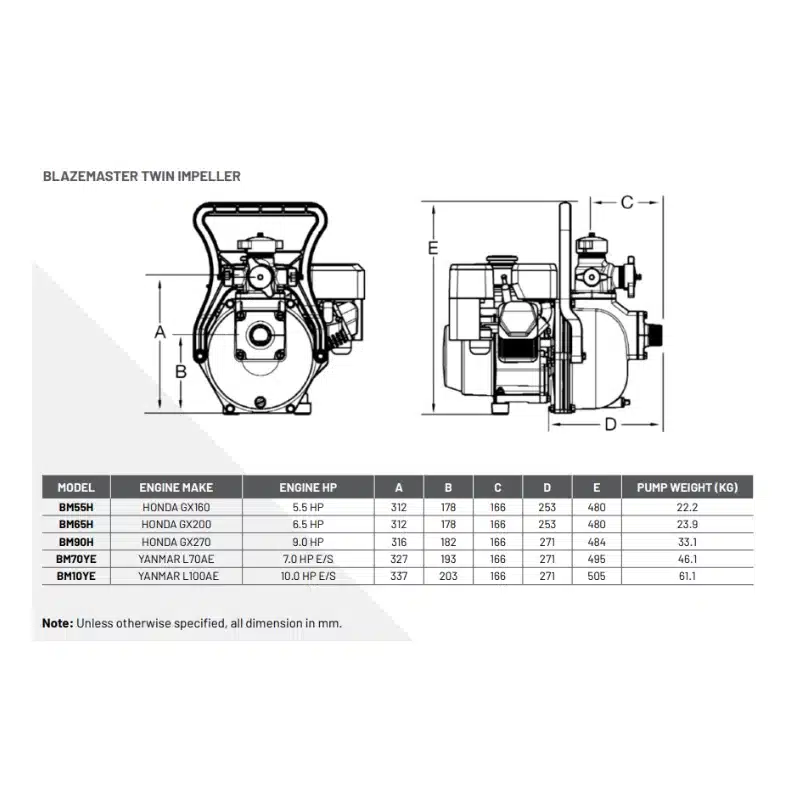

| DIMENTIONS | |||||
|---|---|---|---|---|---|
| TYPE | WEIGHT APPROX. | INLET | OOUTLETS | CARTON L x W x H | PACKED WEIGHT |
| B55H | 22.2 kg | 1½“ BSP (male) | 1“, 1“, 1½“ BSP (male) | 530 x 440 x 550 mm | 27.3 kg |
| B65H | 23.2 kg | 2“ BSP (male) | 1“, 1“, 2“ BSP (male) | 530 x 440 x 550 mm | 28 kg |
| B90H | 32.2 kg | 2“ BSP (male) | 1“, 1“, 2“ BSP (male) | 640 x 560 x 550 mm | 40 kg |
| BM55H | 22.2 kg | 1½“ BSP (male) | 1“, 1“, 1½“ BSP (male) | 530 x 440 x 550 mm | 28.3 kg |
| BM65H | 23.9 kg | 2“ BSP (male) | 1“, 1“, 2“ BSP (male) | 530 x 440 x 550 mm | 29 kg |
| BM90H | 33.1 kg | 2“ BSP (male) | 1“, 1“, 2“ BSP (male) | 640 x 560 x 550 mm | 41 kg |
