Name: Onga BM10YE Blazemaster Dual Stage Yanmar L100N 10HP Electric Start Diesel Engine Fire Pump | Dowdens Pumping & Water Treatment
SKU: BM10YE

Description

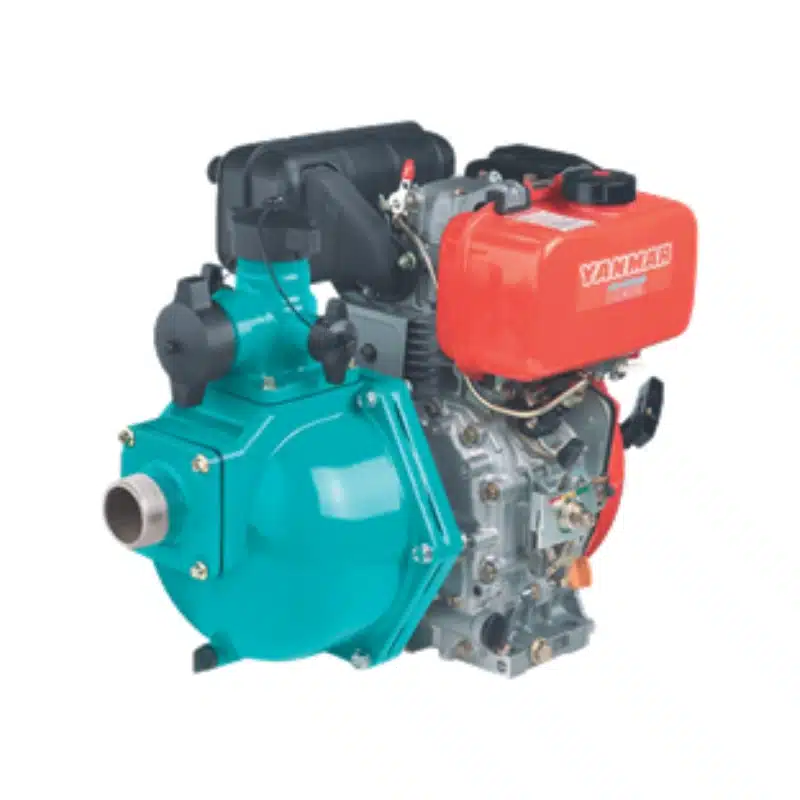

Onga BM10YE Blazemaster Dual Stage Yanmar L100N 10HP Electric Start Diesel Engine Fire Pump

The Blazemaster diesel are available in single and twin stage configuration for situations where more power is required to move large volumes of water quickly and efficiently.

YANMAR – EXCEEDING POWER AND ENVIRONMENTAL EXPECTATIONS

To achieve the highest performing miniaturised and light weight diesel engines, Yanmar developed the L-N series single cylinder, air-single cylinder technologies. Designed with Yanmar’s proprietary direct injection technology, maximum combustion efficiency is realised through the ideal match between the combustion chamber and injection system. this means that a powerful, but environmentally friendly engine.

Key Features

Available in single and twin stage configurations
Large pump casing with raised suction port and inbuilt non-return valve for better priming capabilities
Compact, direct injection technology
Strong, sturdy and made to last

Applications

Firefighting
Tank filling
Water transfer
Irrigation and spraying

Pump Information

Horizontal, single-stage or twin-stage, surface mounted centrifugal pump with closed impeller/s for pumping debris free water coupled to a Yanmar 4.7HP (L48N), 6.7HP (L70N) or 10HP (L100N) engine.

Operating Conditions

Suitable for pumping clean non-aggressive liquids without solids or fibres in
suspension.

For liquids outside of this range please consult your local Onga office for product suitability. Viton seal kit available as replacement service part.

FLUID WATER
Maximum water temperature	55°C
Minimum water temperature	1°C
Maximum ambient temperature	40°C
Maximum casing pressure	1300kPa
Please note: Engine performance greatly reduced with increased ambient temperature and/or altitude, clarify with Engine Manufacturer.

ENGINE DATA
Type	Engine	Model	Nominal HP	Displacement	Continuous Duty	Fuel Tank Capacity	Fuel	Recommended Oil Type	Oil Capacity
B48Y	Yanmar	L48N	4.7	0.219 litres	3000 RPM	1.9 litres	Diesel	Refer to manual	0.8 litres
B70Y	Yanmar	L70N	6.7	0.320 litres	3000 RPM	2.7 litres	Diesel	Refer to manual	1.05 litres
B10YE	Yanmar	L100N	10	0.435 litres	3000 RPM	4.7 litres	Diesel	Refer to manual	1.6 litres
BM70Y	Yanmar	L70N	6.7	0.320 litres	3000 RPM	2.7 litres	Diesel	Refer to manual	1.05 litres
BM10YE	Yanmar	L100N	10	0.435 litres 3	3000 RPM	4.7 litres	Diesel	Refer to manual	1.6 litres

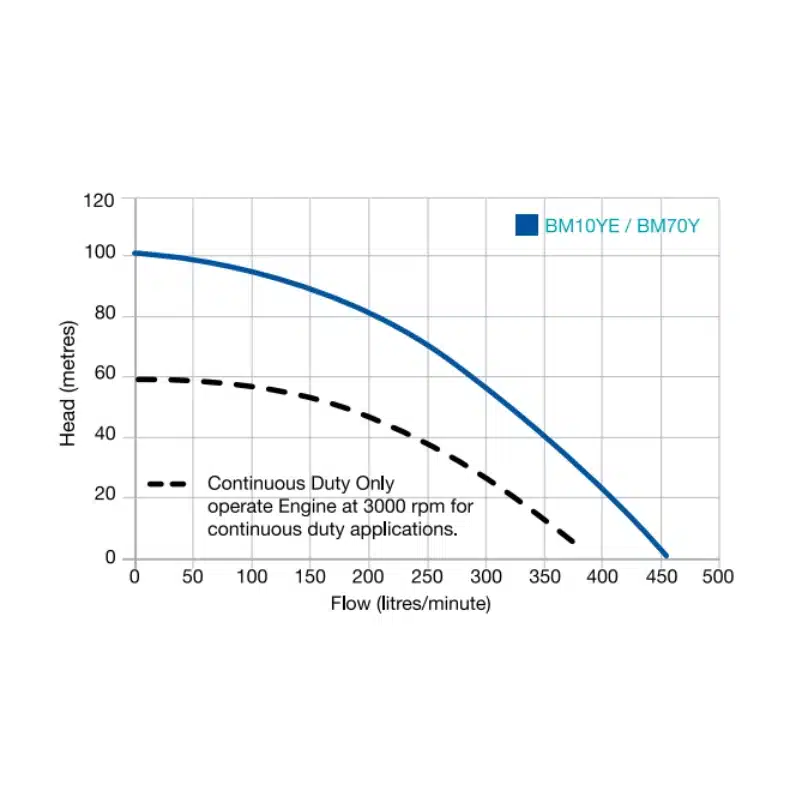

PERFORMANCE
Type	P/No	Delivery Head [m]	10	20	30	40	50	60	70	80	90	100
B48Y	B48Y	Capacity [litres per minute]	480	371	265	145	27	-	-	-	-	-
B70Y	B70Y	Capacity [litres per minute]	561	512	452	365	206	-	-	-	-	-
B10YE	B10YE	Capacity [litres per minute]	561	512	452	365	206	-	-	-	-	-
BM70Y	BM70Y	Capacity [litres per minute]	434	410	382	353	322	288	247	203	144	38
BM10YE	BM10YE	Capacity [litres per minute]	434	410	382	353	322	288	247	203	144	38

PUMP CONSTRUCTION MATERIALS
Component	Material
Pump casing	Powder coated Aluminium
Impeller/s	30% Glass Filled Nylon
Diffuser	Aluminium
Priming/discharge caps	Glass Filled Nylon
Seal flexible bellows	Nitrile
Seal stationary face	Ceramic
Seal rotating face	Carbon
Seal spring	Stainless Steel
Motor shaft	Mild Steel
O‘Rings	Nitrile

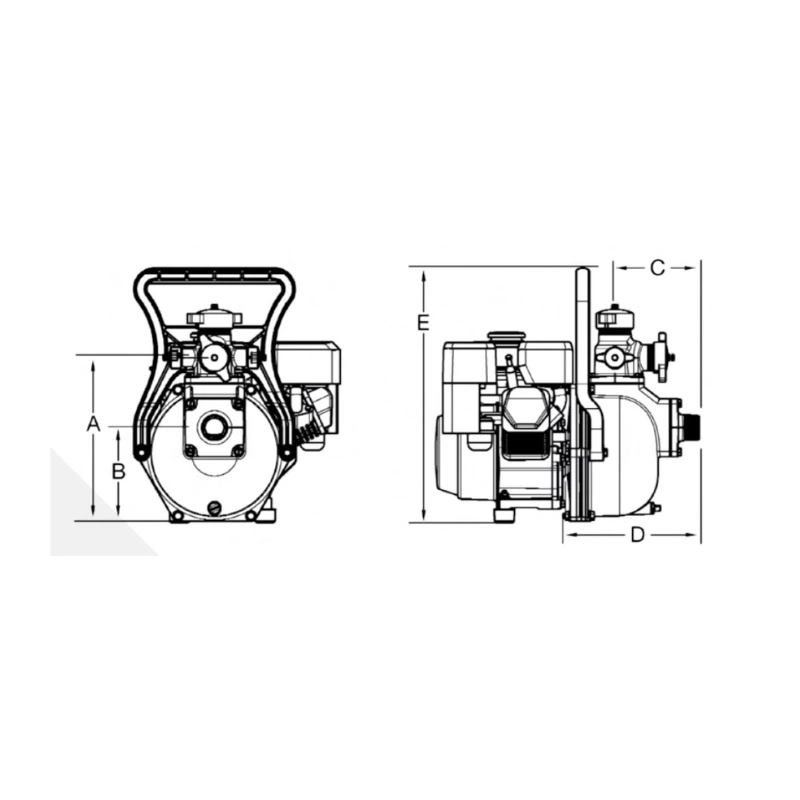

DIMENSIONS
Type	Weight Approx.	Inlet	Outlets	Carton L x W x H	Packed Weight
B48Y	31.2kg	g 1½“ BSP (male)	1“, 1“, 1½“ BSP (male)	620 x 460 x 560 mm	39 kg
B70Y	38.2kg	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
B70YE	45.2kg	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
B10YE	60.2kg	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
BM70Y	41.1kg	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
BM70YE	46.1kg	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
BM10YE	61.1kg	2“ BSP (male)	1“, 1“, 2“ BSP (male)	640 x 560 x 560 mm	74 kg
