Name: Onga B65H Blazemaster Honda GX200 6.5HP Petrol Single Stage Firefighting Pump | Dowdens Pumping & Water Treatment
SKU: B65H

Description

Onga B65H Blazemaster Honda GX200 6.5HP Petrol Single Stage Firefighting Pump

Onga has a vast range of fire fighting pumps to accommodate your requirements. Onga’s single stage Blazemaster pumps are designed to move more water, more economically and come available in both petrol (Honda) and diesel (Yanmar), recoil and electric start models.

Key Features

Lightweight high grade corrosion resistant materials
Large pump casing with raised suction port and inbuilt non-return valve for better priming capabilities
Computational Fluid Dynamics designed hydraulic components for higher performance and efficiency
Strong and durable construction
Max. head – 107 m
Max. flow – 715 lpm

Applications

Fire fighting
Tank filling
Water transfer
Boom spraying
Irrigation

Pump Information

Horizontal, single-stage or twin-stage, surface mounted centrifugal pump with closed impeller/s for pumping debris free water coupled to a Briggs & Stratton Intek I/C 5HP, 6HP, 8HP or 10HP engine.

Operating Conditions

Suitable for pumping clean non-aggressive liquids without solids or fibres in
suspension.

For liquids outside of this range please consult your local Onga office for product suitability. Viton seal kit available as replacement service part.

FLUID WATER
Maximum water temperature	55°C
Minimum water temperature	1°C
Maximum ambient temperature	40°C
Maximum casing pressure	1300kPa
Please note: Engine performance greatly reduced with increased ambient temperature and/or altitude, clarify with Engine Manufacturer.

ENGINE DATA
Type	Engine	Model	Nominal HP	Displacement	Continuous Duty	Fuel Tank Capacity	Fuel	Fuel Consumption @ 3600 RPM	Recommended Oil Type	Oil Capacity
B55BS	B&S	Intek I/C	5	205	3000 RPM	3 litres	Petrol	2.04 litres/hour	SAE30	0.6 litres
B65BS	B&S	Intek I/C	6	205	3000 RPM	3 litres	Petrol	2.11 litres/hour	SAE30	0.6 litres
B80BS	B&S	Intek I/C	8	305	3000 RPM	3 litres	Petrol	3.21 litres/hour	SAE30	0.83 litres
B10BS	B&S	Intek I/C	10	305	3000 RPM	3 litres	Petrol	3.63 litres/hour	SAE30	0.83 litres
BM55BS	B&S	Intek I/C	5	205	3000 RPM	3 litres	Petrol	2.04 litres/hour	SAE30	0.6 litres
BM65BS	B&S	Intek I/C	6	205	3000 RPM	3 litres	Petrol	2.11 litres/hour	SAE30	0.6 litres
BM80BS	B&S	Intek I/C	8	305	3000 RPM	3 litres	Petrol	3.21 litres/hour	SAE30	0.83 litres
BM10BS	B&S	Intek I/C	10	305	3000 RPM	3 litres	Petrol	3.63 litres/hour	SAE30	0.83 litres

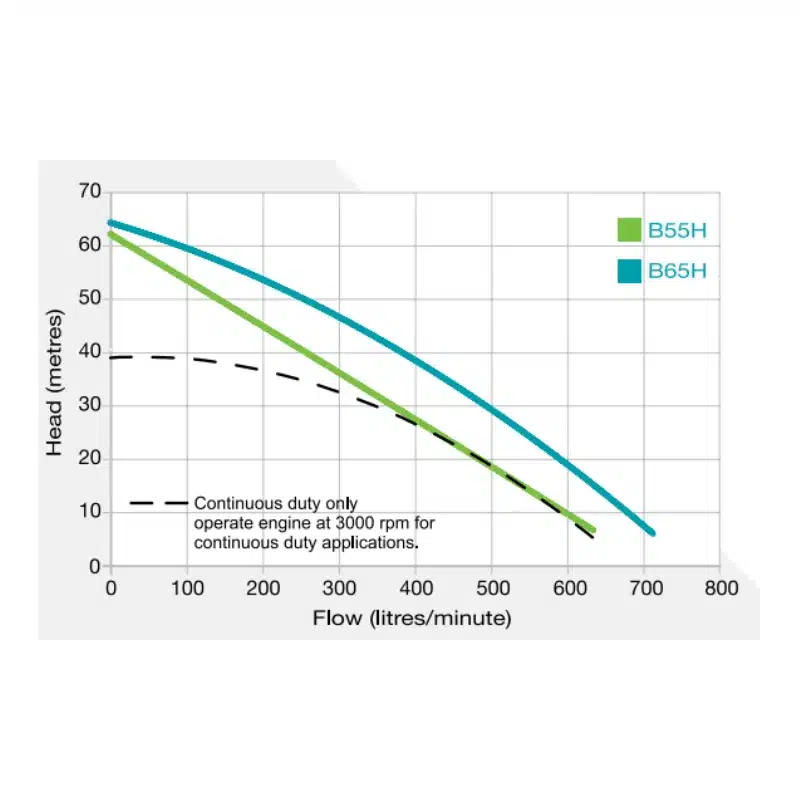

PERFORMANCE
Type	P/No	Delivery Head [m]	10	20	30	40	50	60	70	80	90	100
B55BS	B55BS	Capacity [litres per minute]	600	477	355	230	113	-	-	-	-	-
B65BS	B65BS	Capacity [litres per minute]	670	592	495	375	241	76	-	-	-	-
B80BS	B80BS	Capacity [litres per minute]	694	609	521	430	308	146	-	-	-	-
B10BS	B10BS	Capacity [litres per minute]	712	640	550	456	343	188	-	-	-	-
BM55BS	BM55BS	Capacity [litres per minute]	375	323	274	227	184	142	105	633	28	-
BM65BS	BM65BS	Capacity [litres per minute]	400	370	333	290	246	192	139	96	55	23
BM80BS	BM80BS	Capacity [litres per minute]	400	379	356	334	306	272	230	178	108	27
BM10BS	BM10BS	Capacity [litres per minute]	400	379	356	334	306	272	230	178	108	27

PUMP CONSTRUCTION MATERIALS
Component	Material
Pump casing	Powder coated Aluminium
Impeller/s	30% Glass Filled Nylon
Diffuser	Aluminium
Priming/discharge caps	Glass Filled Nylon
Seal flexible bellows	Nitrile
Seal stationary face	Ceramic
Seal rotating face	Carbon
Seal spring	Stainless Steel
Motor shaft	Mild Steel
O‘Rings	Nitrile

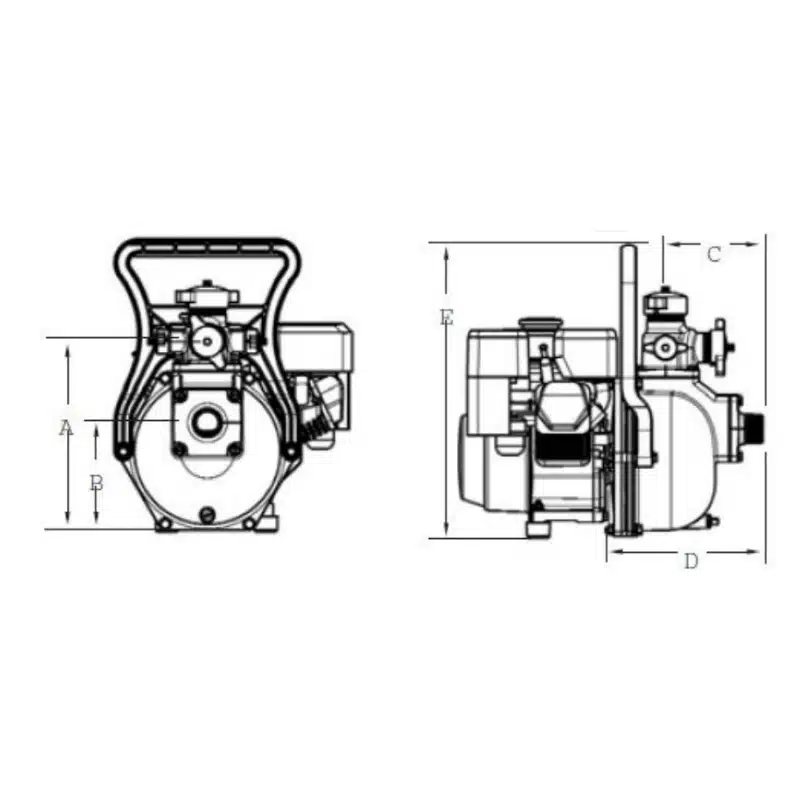

DIMENSIONS
Type	Inlet	Outlets	Carton L x W x H	Packed Weight
B55BS	1½“ BSP (male)	1“, 1“, 1½“ BSP (male)	620 x 465 x 550 mm	29 kg
B65BS	2“ BSP (male)	1“, 1“, 2“ BSP (male)	620 x 465 x 550 mm	29 kg
B80BS	2“ BSP (male)	1“, 1“, 2“ BSP (male)	640 x 560 x 550 mm	40 kg
B10BS	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
BM55BS	1½“ BSP (male)	1“, 1“, 1½“ BSP (male)	620 x 490 x 560 mm	30 kg
BM65BS	2“ BSP (male)	1“, 1“, 2“ BSP (male)	620 x 490 x 560 mm	30 kg
BM80BS	2“ BSP (male)	1“, 1“, 2“ BSP (male)	660 x 560 x 550 mm	42 kg
BM10BSE	2“ BSP (male)	1“, 1“, 2“ BSP (male)	-	-
