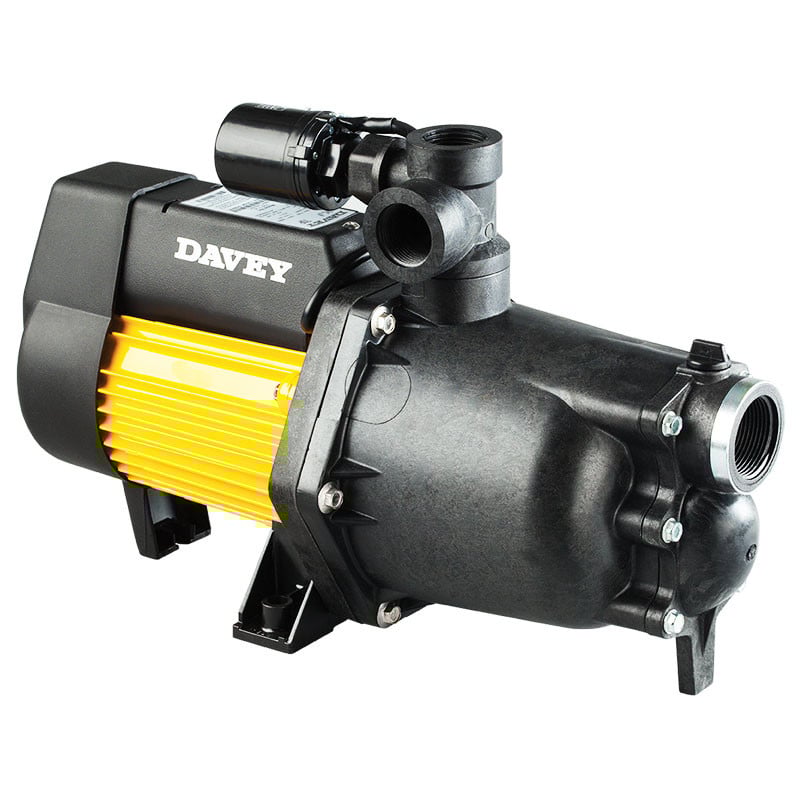

Davey XJ90P Dynajet Pump with Pressure Switch

DYNAJET WITH PRESSURE SWITCH

Davey DynaJet pumps are a compact and economical, single stage jet assisted water pressure system, operated by a pressure switch, with an optional 40P base-mounted tank.

They are ideal for average sized residential homes with modern appliances right through to large double storey homes, pressure boosting applications and for water transfer.

These pumps are also great for domestic irrigation needs.

The DynaJet water pressure systems have been certified and tested to comply with the requirements of the AS/NZS 4020 standard.

The AS/NZS 4020 standard stipulates that products in contact with drinking water do not affect the taste or appearance of the water, do not support the growth of micro-organisms and do not release cytotoxic or mutagenic compounds or metals into the water.

Compact, all stainless steel horizontal multistage centrifugal pump pressure system control options to suit application. Flows to 430lpm and heads to 65m.

Applications

Average homes with modern appliances to large double storey homes
Domestic water supply
Pressure boosting
Automatic water transfer

Why Choose the Davey Everyday Series x with Tank?

Pump

Single stage jet assisted centrifugal with closed vane impeller.
303 stainless steel pump shaft.
Internal suction side check valve fitted.
Mechanical shaft seal.
O-ring casing seals
Pressure switch control with adjustable cut-in and cut-out pressure.

Motor

Davey manufactured.
2 pole, 2850rpm, 50Hz
TEFC with IP55 enclosure.
Class F insulation
Permanently split capacitor design.
Double contact sealed C3-HTG rated ball bearings
Protected against both high operating temperatures and high current by a built-in automatically resetting thermal overload.

Tank

Captive heavy duty butyl diaphragm meets FDA (USA), Watermark (Aust), WRAS (UK) and CE requirements for potable water.
Fully lined water cavity.

Benefits

Manufactured from highest quality corrosion resistant materials
Compact base mounting for quick and easy installation
Fully adjustable pressure switch allows for installation adjustments
TEFC motor-corrosion resistant and excludes dust and dirt
Motor and pump designed for frequent starts
Every tank and pump unit individually tested to guarantee reliable operation
Low maintenance
Easy to service if required

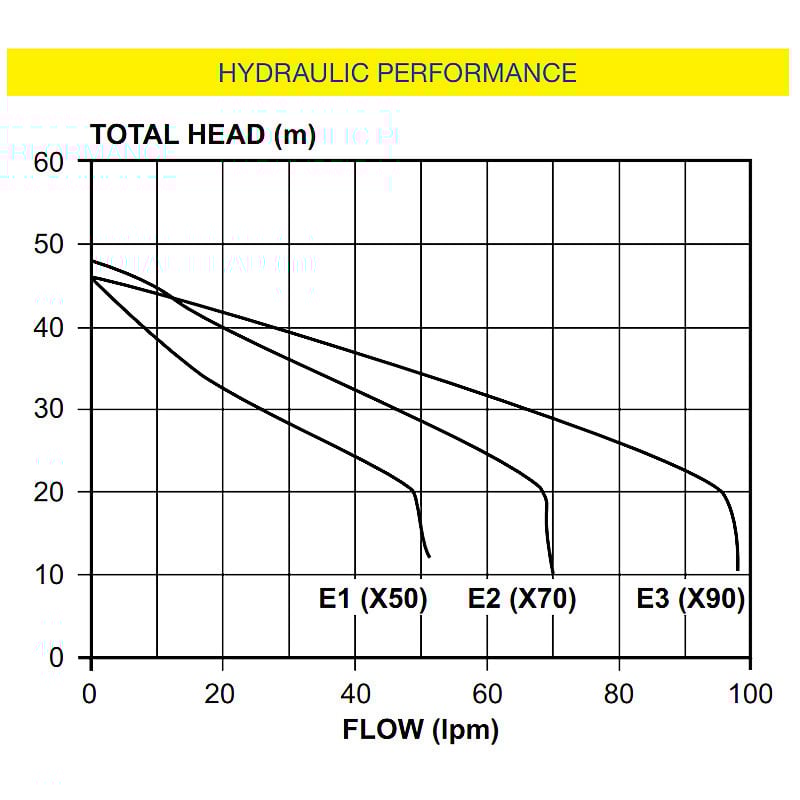

OPERATING LIMITS
Type	E1 (X50)	E2 (X70)	E3 (X90)
Capacities to	50 lpm	70 lpm	90 lpm
Maximum total head	46m	48m	46m
Cut-in pressure (factory setting)	180kPa	210kPa	210kPa
Cut-out pressure (factory setting)	390kPa	420kPa	350kPa
Maximum liquid temperature	50ºC	50ºC	50ºC
Maximum ambient temperature	55ºC	55ºC	55ºC
Maximum suction lift	7m	7m	7m
Inlet size (BSP)	1″ F	11/4″ F	11/4″ F
Outlet size (BSP)	1″ F	1″ F	1″ F

MATERIALS OF CONSTRUCTION
PART	MATERIAL
Impellers	Glass filled polycarbonate
Pump casing	Glass filled noryl
Pump shaft	303 stainless steel
Internal check valve	Delrin
Internal check valve spring	Stainless spring stee
Jet and Venturi	Acetal
Inlet & outlet ports	Glass filled nory
Seal ring (stationary)	Carbon
Seal ring (rotating)	Ceramic
Seal spring	304 stainless steel
Orings	Nitrile rubber
Tank shell	Steel
Tank finish	Polyurethane ename
Diaphragm	Butyl rubber
Tank liner	Virgin polypropylene
Tank inlet	Stainless steel
System base	Noryl

MATERIALS OF CONSTRUCTION
Type	E1 (X50)	E2 (X70)	E3 (X90)
Supply Voltage	220-240V	220-240V	220-240V
Supply frequency	50Hz	50Hz	50Hz
Input power (P1)	0.84kW	1.15kW	1.4kW
Output power (P2)	0.56kW	0.8kW	1.1kW
Full load current	3.6A	5.1A	6.6A
Locked rotor current	12.0A	18.0A	28.0A
Starting	P.S.C	P.S.C	P.S.C
Starting P.S.C. Insulation class	Class F	Class F	Class F
IP rating	IP55	IP55	IP55

Installation & Priming

On installations with suction lifts over 1m a good quality foot valve or non-return valve should be fitted to the suction pipe.
The system is primed by filling the pump and suction line with water through the priming port and replacing priming plug prior to switching on.
