Name: Davey Silensor® SLS100 Water Cooled Pool Pump | Dowdens Pumping & Water Treatment
SKU: SLS100
Availability: OutOfStock

Description

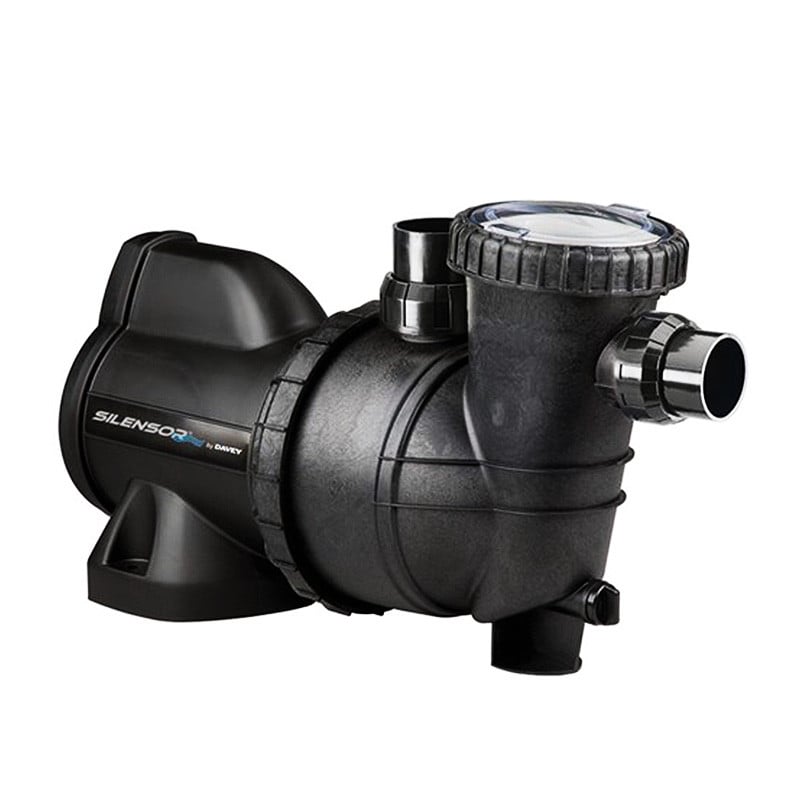

Davey Silensor® SLS100 Water Cooled Pool Pump

REVOLUTIONARY WATER COOLED POOL PUMPS

Applications

Ideal for filtration, auto pool cleaning, backwashing, water features and spa jet operation. Also ideal with solar, gas and heat pump spa & pool heating.

SUPER-QUIET OPERATION AND HIGH EFFICIENCY

Super-Quiet – Designed with a unique water-cooled motor which captures noise and vibrations, allowing super-quiet operation, rated between 54 and 56 dBa. Your neighbours won’t even know it’s there.
Long Lasting – Silensor is designed for long service life in an outdoor, poolside environment and replaces highly corrodible metal components with high performance, long-life plastics for low maintenance and dependable service – year after year
Dependable – Silensor incorporates unique dry run protection to minimise pump damage if no water is available to the pump. It also includes a unique mechanical seal protection for long service life and reduced maintenance
Convenient – Patented water-cooled motor, Silensor does not require air ventilation, and gives installers more flexibility with pump positioning
Double insulated to water circuit – provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards
- SLS models are an ideal replacement for many other pool pump models and are designed to retrofit with minimal hassle
- SLL models feature a large 4.5 litre leaf basket for long intervals between cleaning
Other Great Features
- Rust-proof casing – Heavy duty motor impeller – 316 stainless steel pump shaft
- Motor shell protection with new Armourspray VC (Epoxy)

Electrical Data

Type	SLS100	SLS150	SLS200	SLS300	SLL200	SLL300	SLL400
Voltage (V)	220/240	220/240	220/240	220/240	220/240	220/240	220/240
Supply Freq (Hz)	50	50	50	50	50	50	50
Motor Input Power (W/hP	740/1.0	860/1.2	1090/1.5	1400/1.9	1130/1.5	1400/1.9	1760/2.4
Motor Output Power (W/hP)	525/0.7	620/0.8	775/1.0	960/1.3	830/1.1	960/1.3	1200/1.6
RPM	2850	2850	2850	2850	2850	2850	2850
Enclosure Class (IP)	56	56	56	56	56	56	56
Insulation Class	F	F	F	F	F	F	F
Approval No	A/10EA	A/10EA	A/10EA	A/10EA	A/10EA	A/10EA	A/10EA
Lead Length	3m	3m	3m	3m	3m	3m	3m

Operating Limits

Max water temperature	40°C
Max ambient temperature	40°C
Noise level (AS 5102.2)	54 to 56dBa

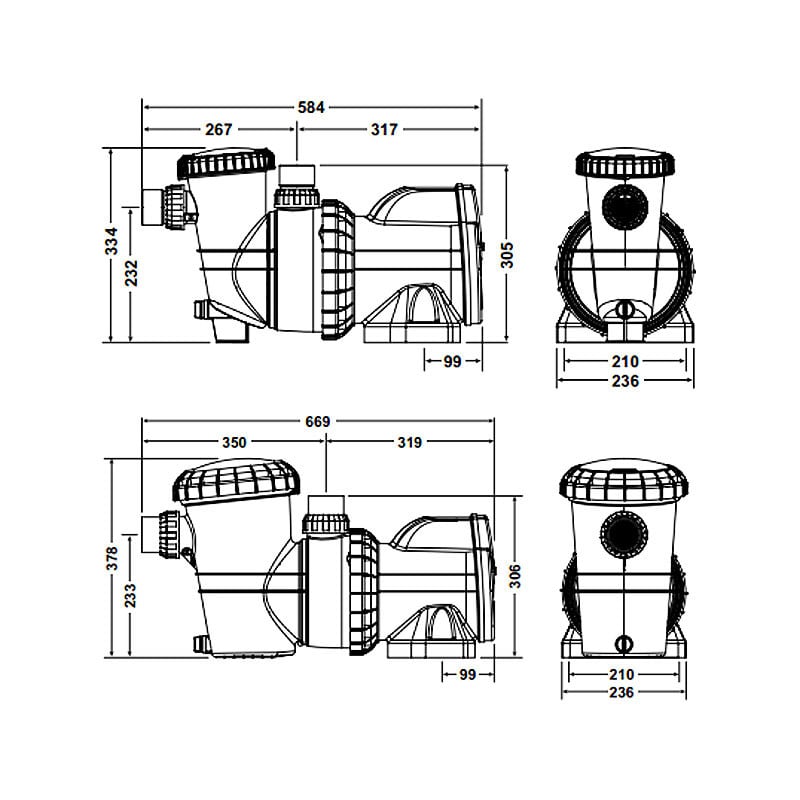

Dimensions

Type	Mounting Holes Diameter	Inlet PVC	Outlet PVC	Net Weight (kg)
SLS100	10 x 34	40	40	11.0
SLS150	10 x 34	40	40	11.0
SLS200	10 x 34	40	40	11.5
SLS300	10 x 34	40	40	11.5
SLL200	10 x 34	40 / 50	40 / 50	12.5
SLL300	10 x 34	50	50	12.5
SLL400	10 x 34	50	50	13.0
