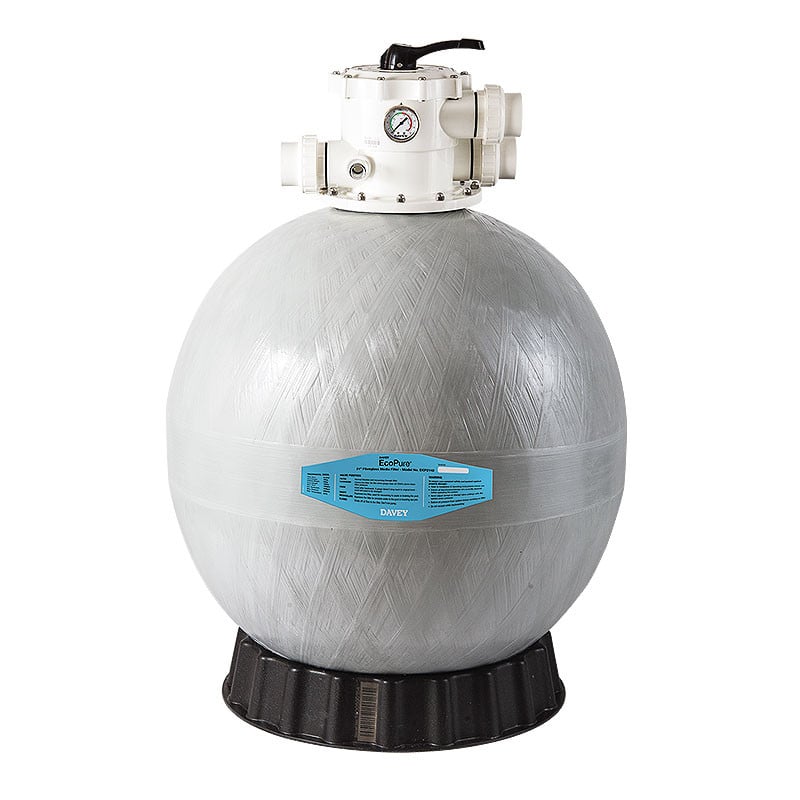

Name: Davey EcoPure® DEP2540 Media Filter | Dowdens Pumping & Water Treatment
SKU: DEP2540
Availability: OutOfStock

Description

ECONOMICAL, SIMPLE, AND COMPACT

Application:

Ideal for inground and above ground pools, swim spas and plunge pools. Suitable for salt, mineral salt and fresh water pools. Models suitable for pools up to 180,000 litres.

COST-EFFECTIVE FIBREGLASS MEDIA FILTERS

Easy to use and virtually maintenance free
Constructed from strong corrosion and UV resistant bobbin wound fibreglass, providing long and reliable working life
Built-in waste port sight glass for high visibility during backwashing
Large media capacity providing less frequent backwashing to save water
Stainless steel oil filled pressure gauge makes it easy to see when backwashing is required
High rate design for maximum efficiency, suitable for sand, Zelbrite and glass media

PERFORMANCE & MEDIA
Model	Size (inches)	Sand Required (kg/bags)	Zelbrite Required (kg/bags)	Glass Required Fine/ Medium (kg/bags) - Medium/ Coarse (kg/bags)	Maximum Flow Rate (lpm)	Minimum Backwash Flow Rate (lpm)	6 Hour Turnover (litres)	Filtration Area (m2 )	Max. Water Temp (ºC)/ Operating Pressure (kPa)
DEP2140	21'	85/5	64/5	45/3 - 30/2	185	123	66,600	0.22	40/320
DEP2540	25''	145/8	109/8	75/5 - 30/2	260	173	93,600	0.32	40/320
DEP2850	28''	215/11	158/11	105/7 - 45/3	325	217	120,960	0.41	40/320
DEP3250*	32''	355/18	270/18	180/12 - 75/5	415	277	149,400	0.53	40/370
DEP3650*	36''	470/24	360/24	240/16 - 105/7	520	347	187,200	0.66	40/370
DEP4050*	40''	620/31	465/31	330/22 - 135/9	650	433	234,000	0.81	40/370
