Name: Davey 5165H Honda Petrol Firefighter Pump | Dowdens Pumping & Water Treatment
SKU: 5165H
Availability: OutOfStock

Description

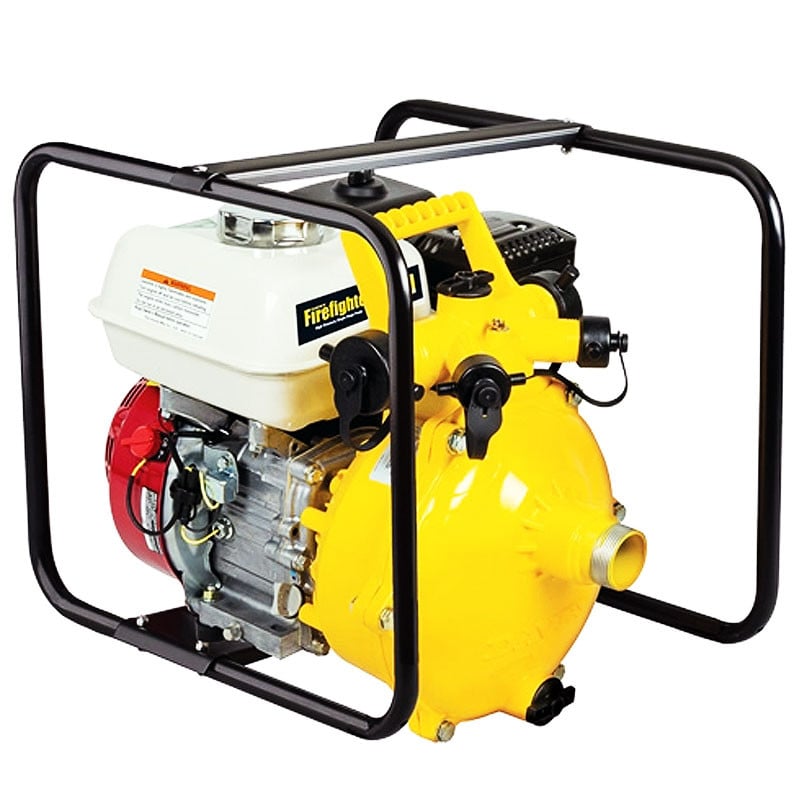

Davey 5165H Honda Firefighter Pump

The Davey 5165H Series Firefighter Pump is a rugged, economical single impeller self-priming pump. This model has the Honda GX200 Electric Start Petrol Engine.

Single impeller design provides the versatility of high flow rates with strong pressure, Heavy duty aluminium casing, impellers, and diffusers for extra strength and durability.

Patented clamped impeller designed to enable longer impeller life, improved performance, and easier disassembly in the case of blockage, Polyester coated pump casing, exterior, and interior, for added corrosion resistance, 4-way discharge port for easy installation.

Conveniently positioned handle provides a comfortable grip without compromising on strength, Self-priming from up to 7m for more versatile installation options.

Applications

Firefighting
Tank filling
Irrigation
Garden watering
Water transfer
Crop spraying

Driven by a Honda GX160 or GX200 engine. The GX200 engine is also available in electric start
Patented clamped impeller design to enable longer impeller life and easier disassembly in case of blockage
Single stage design provides the versatility of high flow rates with strong pressure.
Thrust balanced impeller design to extend engine life.
Pump casing, diffusers and impellers manufactured from quality corrosion-resistant marine grade aluminium for long life.
Choice of 3 or 4 way discharge port for easy installation with a choice of plumbing sizes.
Polyester coated pump casing, exterior and interior, for added corrosion resistance
Patented floating impeller neckrings front and back help improve pumping efficiency and extend seal life, dramatically reducing engine wear.
Self priming from 7m for more versatile installation options
Large priming and drain port with bayonet fit plugs to accept pressure gauges or drain cocks.
Low-oil protection on all models to protect your engine
“HE” (electric start models) have electric starter and recoil starter fitted to ensure a choice of starting methods, even if the battery is flat or removed.
“HV” models come with Viton seal, o-rings, gaskets, caps etc. fitted for improved chemical resistance. (Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty.)
All engines conform to the tough environmental requirements of the USA EPA and CARB standards, to help look after the environment.

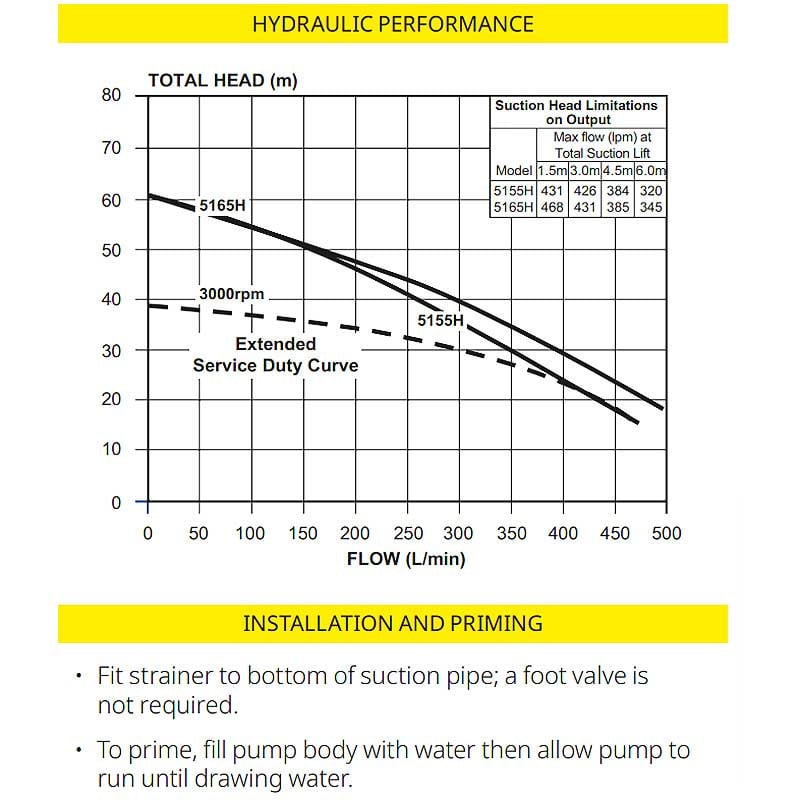

OPERATING LIMITS
Flow capacities to	500 L/min
Maximum total head	72m
Maximum suction lift	7m
Maximum water temperature	50*C
Minimum water temperature	1*C
Maximum casing pressure	1000kPa
Minimum suction pipe size	1 1/2"
Suction pipe strainer	Required
Inlet size*	1 1/2” or 2”

ENGINE DATA
Single Stage Pump Model	5155H 5155H3 5155HV	5165H 5165H23W 5165HQ	5165HE
Engine brand	Honda	Honda	Honda
Engine model	GX160	GX200	GX200E
Engine type	Overhead valve	Overhead valve	Overhead valve
Displacement (cc)	163	196	196
Fuel tank (litres)	3.1	3.1	3.1
Oil capacity (litres)	0.6	0.6	0.6
Compression ratio	8.5 : 1	8.5 : 1	8.5 : 1
Air filter type	Twin stage-foam prefilter with paper element final filter	Twin stage-foam prefilter with paper element final filter	Twin stage-foam prefilter with paper element final filter
Spark arrestor	YES	YES	YES
Approximate fuel consumption@ full load @ 3600 rpm	1.7 L/hr	1.7 L/hr	1.7 L/hr
dBa @ 4m @ 3600 rpm@ full head	85	86	86

MATERIALS OF CONSTRUCTION
PART	MATERIAL
Suction cover	Marine grade aluminium (AS605)
Diffuser	Marine grade aluminium (AS605)
Impeller	Marine grade aluminium (AS605)
Casing / yoke	Marine grade aluminium (AS605)
Mechanical seal	Carbon / ceramic
Discharge / handle	Marine grade aluminium (AS605)
Casing bolts	Zinc plated steel
Yoke bolts	Stainless Steel
Flap valve / seal ring	Zinc body, hytrel seal
Neck ring, priming and drain plug	Glass filled nylon
Casing, priming and drain plug o-ring	Nitrile rubber
Discharge gasket	Hytrel
Paint finish	Baked polyester powder coat
