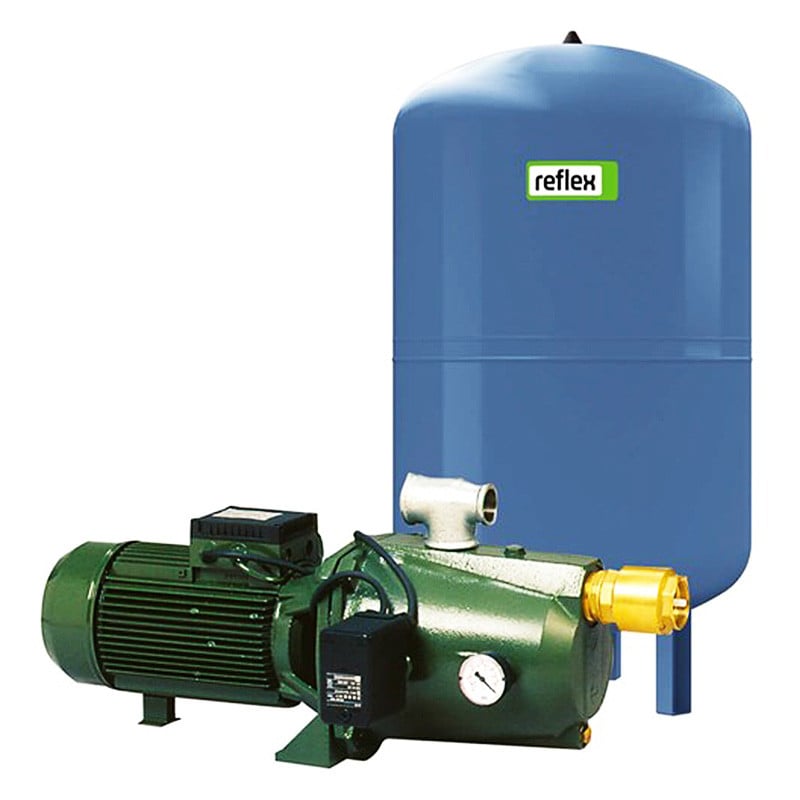

DAB JET 200MP 50V Cast Iron Shallow Well Jet Pump With Pressure Switch & 50L Tank

Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 – E25 – E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F

Operating range: up to 4.3 m3/h.
– Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
– Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses
– Maximum ambient temperature: +40°C
– Maximum operating pressure: DP 82 – DP 102 6 bar (600 kPa), DP 151 – DP 251 8 bar (800 kPa)
– Installation: fixed in a horizontal position
– Special executions on request: other voltages and/or frequencies

• Pressure switch with adjustable differentia
• Pressure gauge
• Self priming centrifugal pump with excellent suction capabilty
• A pressure tank is required
