Pump Series Overview
KTZ series
The KTZ series is a submersible three-phase cast iron high-head heavy-duty drainage pump. Its cast iron body and high-chromium cast iron impeller enable it to withstand demanding conditions found in construction, aggregate, and mining applications.
The top discharge side flow design assures efficient motor cooling even when exposed to air. The pump’s slim design allows it to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents the discharge hose from folding or bending.

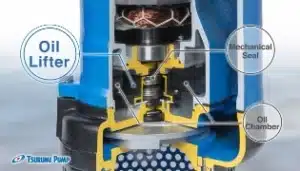

The pump range with a 7.5 to 22kW motor incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
HSD Series

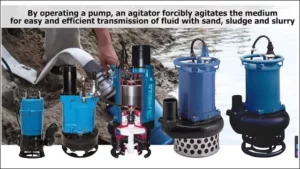

The HSD series is a submersible single-phase portable slurry pump. It is equipped with a high-chromium cast iron agitator that assists in the smooth suction of settled matter.
Though the pump is a single-phase unit, it is durable enough to be used as a three-phase slurry pump since the wear parts are made of abrasion-resistant materials.
HSZ Series
The HSZ series is a submersible single-phase automatic portable drainage pump. The automatic operation, controlled by a single float switch, reduces consumption and extends operating life.
Though the pump is a single-phase unit, it is durable enough to be used for three-phase drainage pumps since the wear parts are made of abrasion-resistant materials.
The side discharge spiral design allows smoother passage of the sucked solid matter. The shaft-mounted agitator prevents “Air Lock,” which occurs on vortex or semi-vortex pumps.
LB Series
The LB-series is a submersible single-phase portable drainage pump. Though it is a single-phase unit, it is durable enough to be a three-phase drainage pump since its wear parts are abrasion-resistant.
The top discharge, flow-thru design provides maximum motor cooling efficiency, allowing continuous operation at low water levels and extended dry-run capability. Every LB model is slim enough to be accommodated in an 8-inch pipe. The discharge direction is selectable between vertical and inclined, which prevents the discharge hose from folding or bending.
LSC Series
The LSC series is a submersible single-phase portable residue drainage pump. The specially designed bottom plate lets the pump drain to a 1mm water level. It has a swing check valve that prevents the reverse flow of the sucked water when the pump stops its operation.
The rubber-lined base plate protects the floor surface from scratching. Though the pump is a single-phase unit, it is durable enough to be used as a three-phase drainage pump since the wear parts are made of abrasion-resistant materials.
The top discharge, flow-thru design provides maximum motor cooling efficiency, allowing continuous operation at low water levels and extended dry-run capability. The discharge direction is selectable between vertical and inclined, which prevents the discharge hose from folding or bending.
PU Series
The PU-series is a submersible vortex pump designed for raw sewage, wastewater, and liquids carrying solid matter. It is made of resin and 304 stainless steel and is excellently corrosion-resistant.
The vortex mechanism provides practically unchokable operation in sewage pumping. Liquid paraffin is used to lubricate oil, which widens the pump’s application to decorative waterfalls, fishponds, aquaculture, etc.
C Series

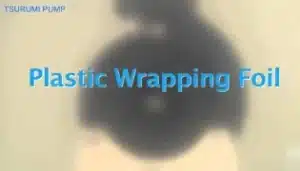

The C series is a submersible cutter pump for sewage, made of casting and equipped with a cutting mechanism.
Featuring a combination of impeller vane with brazed sintered tungsten carbide alloy edge and a suction cover of serrated shape, the C-series pumps enable smooth pumping while cutting solid and fibrous matter during suction.
The impeller and suction cover of the “CR” type are made of high-chromium cast iron, ensuring excellent durability and enabling the pump to maintain high performance for an extended period.
