Abaque

Abaque

With over 20 years of experience pumping and transferring difficult chemicals and fluids, Abaque™ Peristaltic Hose Pumps will handle your toughest pumping needs — from abrasive to aggressive to shear-sensitive and viscous fluids.

Abaque pumps have been specifically designed to operate in some of the most demanding environments, including mining, water and wastewater treatment, energy, chemical processing and OEM applications.

Why Abaque Hose Pumps?

Upgrade your systems with the reliability and efficiency of Abaque Hose Pumps. Designed with precision and backed by years of industry expertise, these pumps are the ultimate solution for handling even the toughest applications.

Built to withstand abrasive, corrosive, and high-viscosity fluids, Abaque Hose Pumps are engineered for performance and durability, ensuring minimal downtime and reduced maintenance costs.

Abaque Peristaltic Hose Pump Operation

Overview

Abaque is a leading manufacturer of peristaltic (hose) pumps designed for transferring difficult chemicals and fluids in challenging applications. These pumps are particularly well-suited for handling abrasive products containing suspended particles.

Industries

Abaque pumps are widely used in various industries, including food production, where they meet strict hygienic standards. They are ideal for pumping products such as pastry, tomato puree, crushed vegetables, beverages, dairy products, and confectionery.

Pump Models

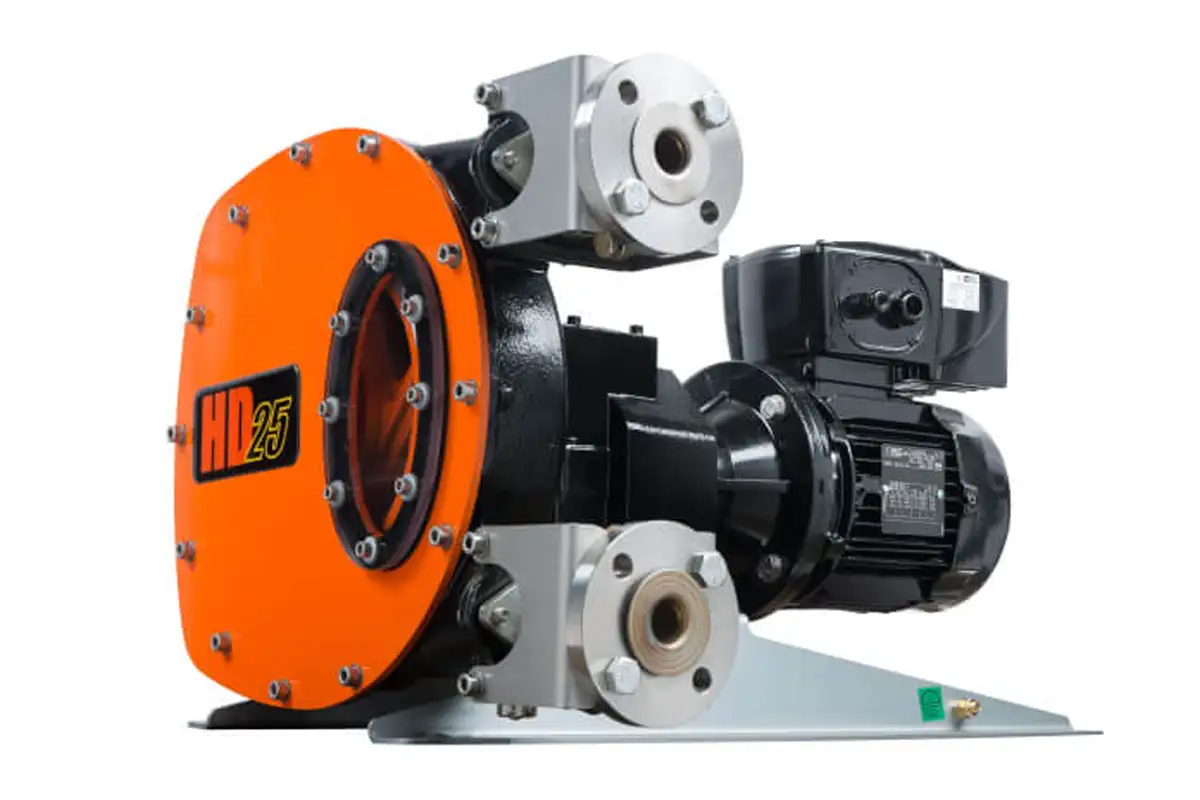

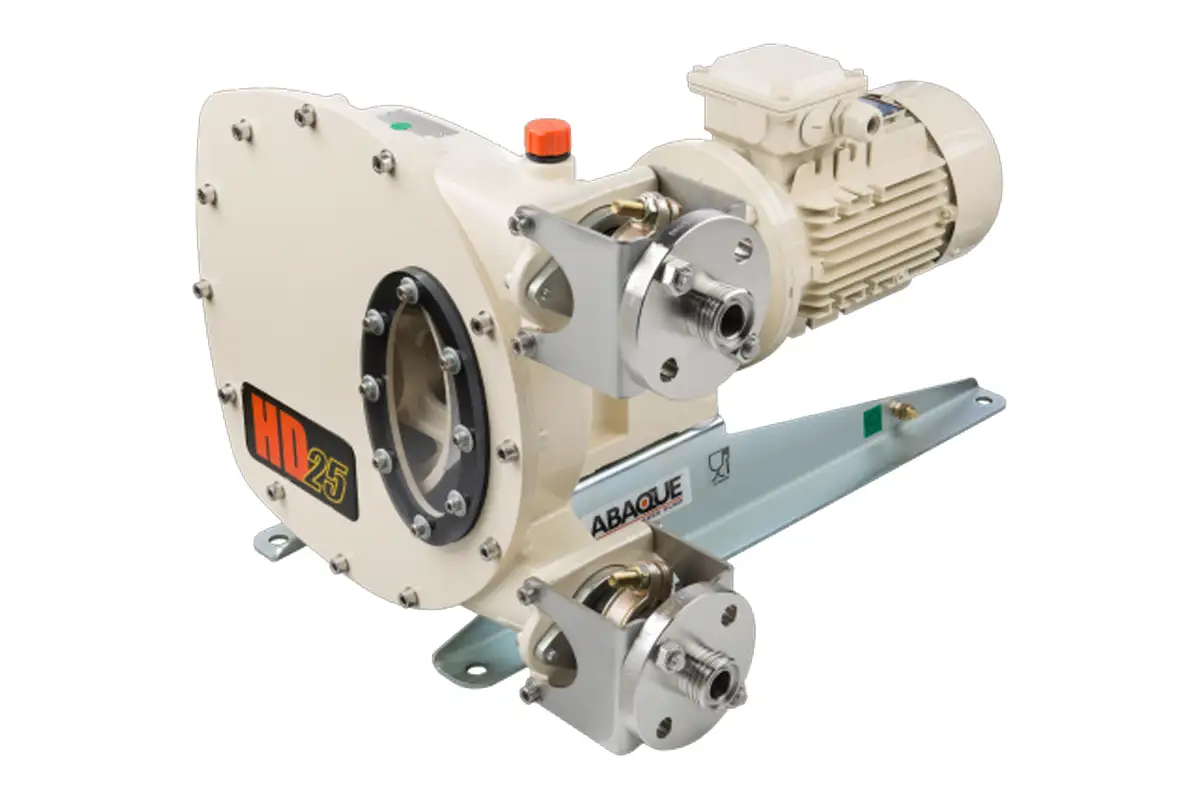

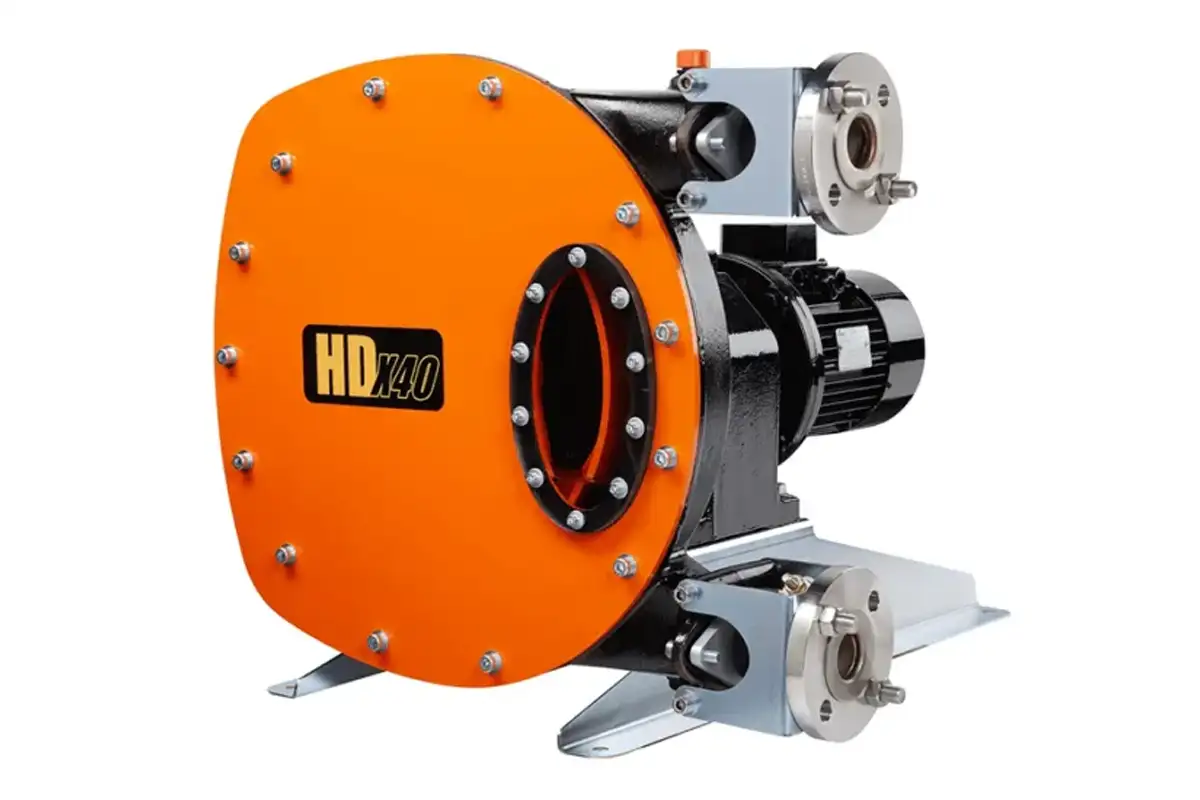

The Abaque pump range offers models with different flow rates and pressure capabilities. For example, the HD10, HD15, and HD20 Hygienic series can handle flows up to 750 l/h with pressures up to 7.5 bar. Larger models like the HD25, HD32, HD40, and HDX40 are also available for applications requiring higher flow rates.

Advantages

Overall, Abaque peristaltic pumps offer a reliable, hygienic, and versatile solution for fluid transfer in demanding industrial applications, with a focus on simplicity of use and easy maintenance.

Markets

Chemical Processing

These pumps are the ideal technology to utilise when looking to optimize the safe and efficient handling and transfer of dangerous chemical materials, thanks to a seal-free design that eliminates leaks and product contamination.

>Achieving full containment of raw materials, many of which can be hazardous to people and the environment, is a key consideration for chemical processors. Abaque™ pumps are the ideal technology to utilise when looking to optimise the safe and efficient handling and transfer of these dangerous chemical materials thanks to a seal-free design that eliminates leaks and product contamination.

Food, Beverage & Cosmetics

Abaque pumps meet the challenging requirements of the food, beverage, and cosmetic industries thanks to their seal-free design, which eliminates leaks and product contamination.

The pumps meet the challenging requirements of the food, beverage and cosmetic industries thanks to a seal-free design that eliminates leaks and product contamination. Additionally, the smooth operation of the pumps allows them to handle the shear-sensitive products often found in these operations with ease. Abaque pumps are also available with FDA and EC 1935/2004 certified hoses, which allow them to meet strict hygienic standards.

Mining

Abaque pumps meet the challenging requirements of the mining industry thanks to a stronger and more durable rotor design and patented hose-holding system.

The pumps have been specifically designed to meet the challenging requirements of the mining industry thanks to a stronger and more durable rotor design and patented hose-holding system. Featuring a seal-less design that eliminates leaks and product contamination, Abaque pumps are ideally suited for a wide variety of tough mining applications. With no moving parts that come into contact with the product and the ability to handle slurries that contain up to 80% solids with ease, Abaque pumps offer significant advantages over competitive pumps.

Water & Wastewater

Abaque pumps have been specifically designed to meet the challenging requirements in the wastewater treatment industry thanks to a seal-less design that eliminates leaks and product contamination.

The pumps have been specifically designed to meet the challenging requirements in the wastewater treatment industry thanks to a seal-less design that eliminates leaks and product contamination. With no moving parts that come into contact with the product and the ability to handle slurries that contain up to 80% solids with ease, these pumps offer significant advantages over competitive pumps.

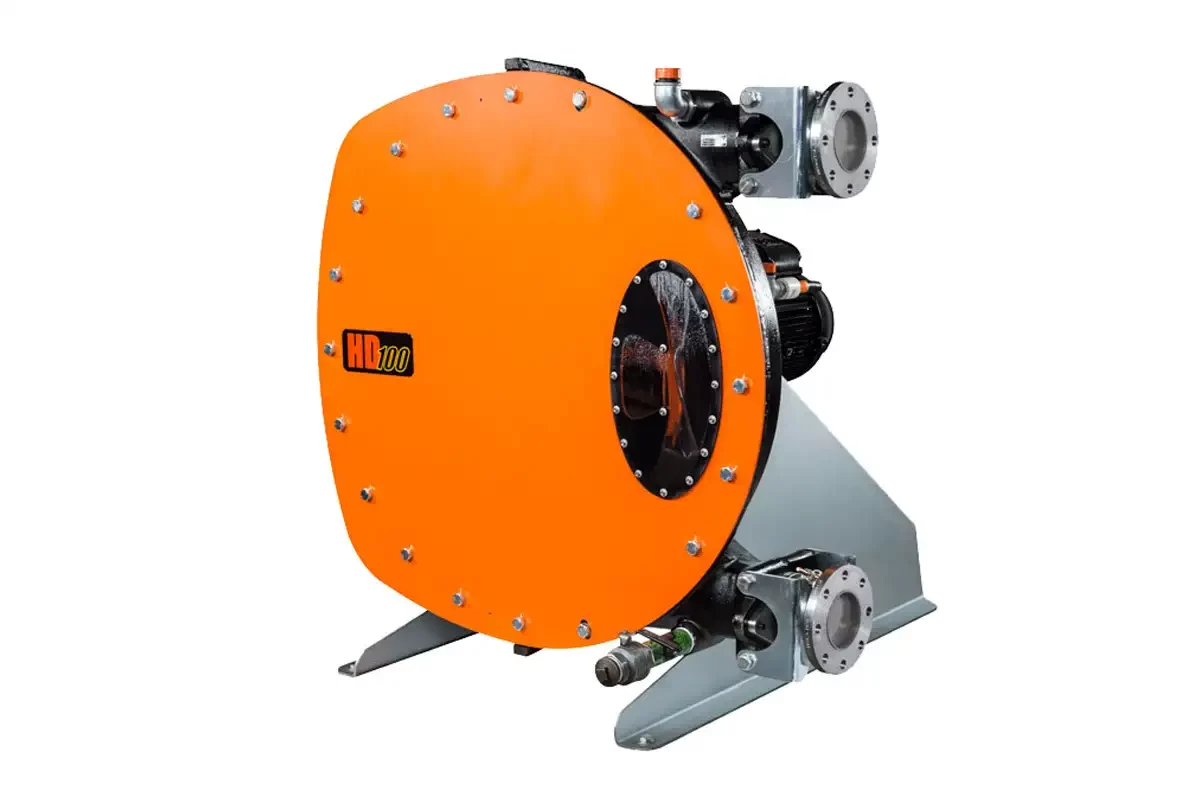

Abaque Product Range

Abaque has a range of products to suit various industries and applications, including Chemical Processing, Food, Beverage & Cosmetics, Mining and Wastewater.

Abaque Product Range

Abaque offers a comprehensive range of high-performance peristaltic hose pumps designed to meet the demanding requirements of various industries, including mining, water and wastewater treatment, energy, and chemical processing. These pumps are particularly effective for handling abrasive and shear-sensitive fluids, with capabilities to manage liquids containing suspended particles.

Performance and Options

Performance

  • The seal-free design eliminates leaks and contamination
  • Excellent self-priming 25,5ft (9 meters)
  • Ability to run dry continuously
  • Can handle your toughest pumping needs from abrasive and aggressive fluids to sheer sensitive and viscous materials
  • The pump is capable of running in forward or reverse
  • Its solid construction and advanced design also reduce maintenance and repairs

Options

  • Hose: Natural rubber, Buna (NBR), EPDM, NR FDA 1935/2004, NBR FDA, Hypalon
  • Leak detector
  • Vacuum Kit
  • Non-metallic insert (PPH, PVDF)

Features and Benefits

  • Self-priming
  • Can run in forward or reverse
  • Suction-lift capabilities to 32.8 feet (9.5 meters)
  • Discharge pressures to 232 psi (16 bar)
  • Handles water-like viscosities as high as 352,000 SSU (70,000 cSt)
  • Transfers solid and soft particles.
  • All hoses handle liquid temperatures from 0°C to 80°C.
  • EPDM hoses handle temperatures up to 90°C



How Abaque Pumps Work

The Peristaltic Principle

  • High performance: Seal-less design eliminates leaks and product contamination and has the ability to run dry continuously without adversely affecting the pump’s performance, pressure, and accuracy (no slip).
  • Reliability: The Abaque pump has none of the usual parts that create problems on other pumps: seats, valves, mechanical seals. The hose is the only replacement part.<
  • Handling of the toughest pumping challenges, including extremely abrasive and aggressive fluids, solid loaded liquids, as well as shear sensitive and viscous materials.

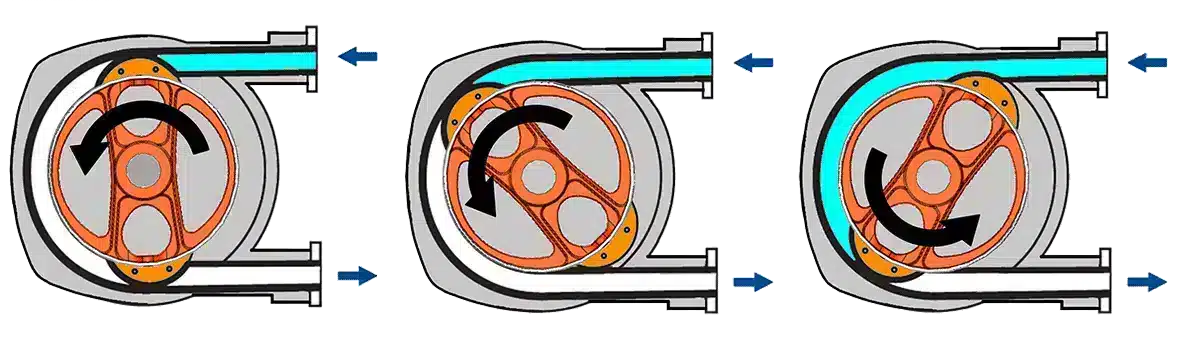

Abaque Pump Principle

Featured Knowledge Base Articles

Our Knowledge Base is a comprehensive resource designed to empower users with valuable insights into pumping, irrigation, and water treatment systems. It features a diverse range of articles, including informational guides, how-to instructions, troubleshooting tips, and FAQs, catering to beginners and experienced users.

Whether you want to understand industry trends, optimize system performance, or resolve common issues, the Knowledge Base offers step-by-step guidance and expert advice. Its focus is on self-service support, enabling you to make informed decisions and confidently manage systems while providing access to personalised assistance.

KBA-1

10 Ways To Murder Your Pump

KBA-12

A Comprehensive Guide to Water Pump Types

KBA-14

Pressure Pump Sizing Guide: Everything you need to know to correctly size a pump

KBA-15

Water Treatment and Filtration Terms: A-to-Z Guide to Water Treatment and Filtration Terms

Featured Applications

Dowdens offers Abaque™ Peristaltic (Hose) Pumps suitable for a wide range of applications, including chemical filtering & processing, sewage & sanitation, and water treatment.

Chemical Processing, Filtration & Dosing Pumps

Pressure & Flow Control

Featured Industries

Dowden’s supplies and services Abaque™ Peristaltic (Hose) Pumps to a wide range of industries, including mining oil & gas, chemical processing, and water & wastewater.

Chemical Processing

Food & Beverage

General Industrial

Mining , Oil & Gas

Featured Documents

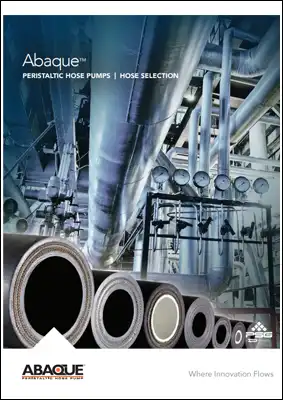

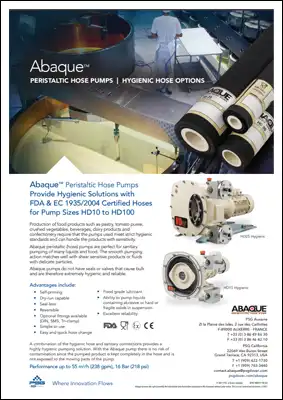

View our document library, including product brochures, case studies and news articles related to Abaque™ Peristaltic (Hose) Pumps.

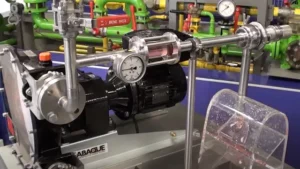

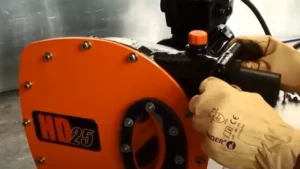

Featured Videos

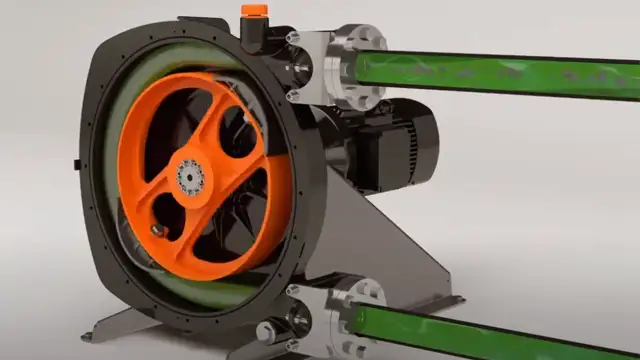

The Abaque Peristaltic Hose pump has been designed to handle your most challenging pumping needs, with over 20 years of experience in pumping and transferring difficult chemicals and fluids. This pump can handle a wide range of fluids, from abrasive and aggressive to shear-sensitive and viscous ones. To get a better understanding of how the Abaque pump works, please check out the operation videos below.

Featured Case Studies

Explore Dowdens Pumping & Water Treatment’s expertise through our extensive case study portfolio. Discover our innovative solutions, designed to deliver outstanding results for clients across various industries.

CS-03 – July 2017

Port Douglas Resort Sewage Pump System Upgrade

CS-05 – August 2017

Unique Floating Solar Pump

CS-69 – April 2012

Water Treatment System Goonyella Riverside Mine

CS-36 – August 2015

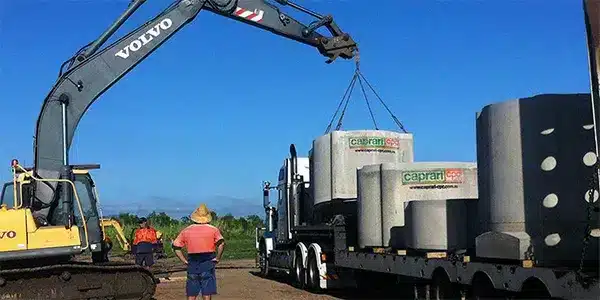

Whitsunday Gardens Precast Concrete Pump Station
