Description

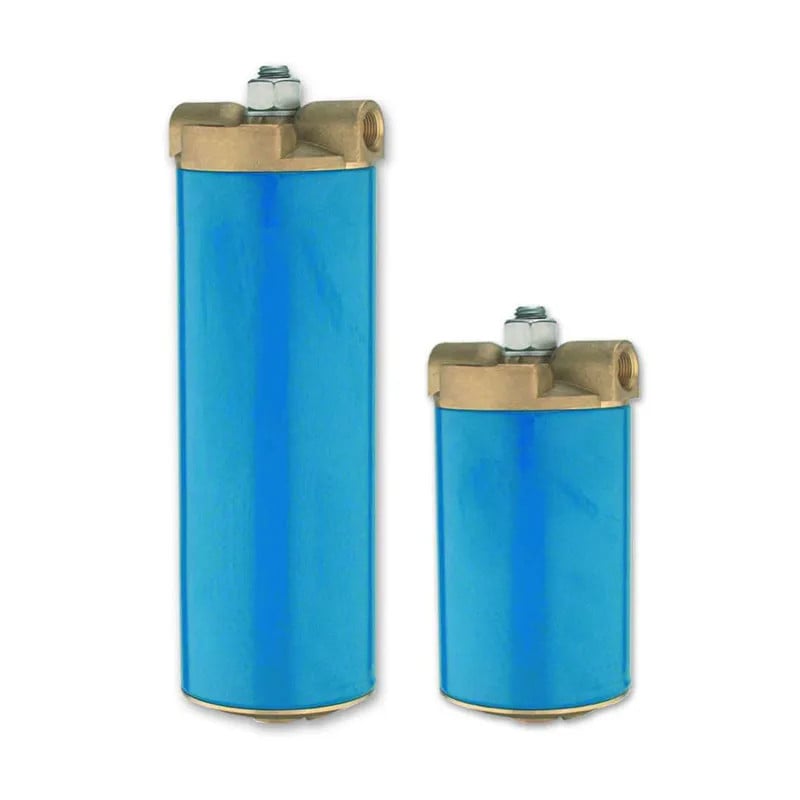

Bermad “LC” Large Control Filter

The Large Control Filter is used for filtration of dirty control fluid that might quickly block a smaller filter element. The Large Control Filter increases the reliability of the control valve system and time between maintenance, while minimizing faulty operation.

The large control filters are available with 2 types of filter element – screen or disc.

Filter types:
Large Control Filter (F)
Double Large Control Filter (F1)
Filter Element (*):
Screen filter element type – 50 mesh, 300 μm
Disc filter element type – 70 mesh; 200 μm
Pressure Rating:
25 bar; 350 psi (Standard)
40 bar; 600 psi (HP Model)
Max Temperature: 80°C; 180°F
Ports: 3
/8” NPT female, ½” NPT female
Standard Materials:
Body: Carbon Steel, Epoxy Cotaed
Covers: Brass
Stem: Stainless Steel 304
*For HP models stem might differ
Nut: Stainless Steel 304
Filter Element:
- Screen filter element type – structure: Polypropylene 20% GF woven net: Stainless steel 316L (**) or Polyester
- Disc filter element type – structure: Polypropylene discs: Polyethylene
Seals: NBR
Optiona Materials:
Body: SST 316, NAB, Super Duplex, Hastalloy
Covers: SST 316, NAB, Super Duplex, Hastalloy
Stem: SST 316, NAB, Super Duplex, Hastalloy
Nut: SST 316, NAB
Seals: EPDM, Viton
