Description

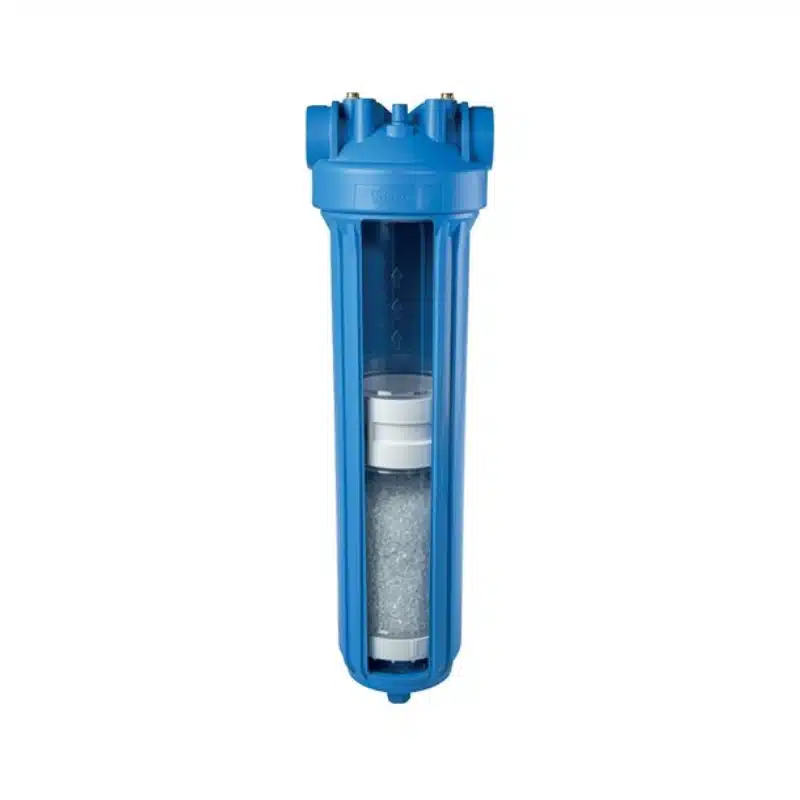

Atlas Filtri ScaleArmor Rock 20” Big Cartridge with 20” Big Housing Kit

CERTIFIED SCALE REDUCTION -86%* BLOCKS SCALE – PROTECTS PIPES – REDUCES CONSUMPTIONS

ScaleArmor™ ROCK is the IAPMO Z601 certified system that prevents limescale build-up with 86% effectiveness compared to untreated water.

ScaleArmor™ ROCK prevents the build-up of limescale and deposits on surfaces and also reduces pipe scale build-up. It does not soften the water, but prevents the growth of calcium and magnesium carbonate crystals that form limescale.

ScaleArmor™ ROCK is a ready-to-use kit that contains: housing, cartridge, spanner, wall bracket, o-ring, lubricant and instructions. To maintain certified effectiveness, use only the original ScaleArmor™ jar refill: 1 refill = 1 full cartridge.

ScaleArmor™ ROCK: certified scale prevention up to 86% in comparison with an untreated system.

Test specimen was conducted in a tankless system.
Water heated to 72.2 °C
Synthetic water was used in testing

BENEFITS

86% SCALE REDUCTION*
CONTINUOS EFFECTIVENESS UP TO 2 YEARS
WORKS AT HIGHER TEMPERATURES
ECOFRIENDLY:
- REDUCES ENERGY CONSUMPTION
- REFILLABLE CARTRIDGE
- RECYCLABLE MATERIALS

SPECIFICATIONS

Selected raw materials, suitable for drinking water.
Head: reinforced polypropylene.
Bowl: reinforced polypropylene.
O-ring: Silicone.
Breather-valve: body polypropylene, o-ring EPDM.
Drain plug: nylon.
Gauge plug: CW 511 L brass. Filter Media: ScaleArmor™

HOUSINGS WITH PLASTIC AND BRASS THREADS

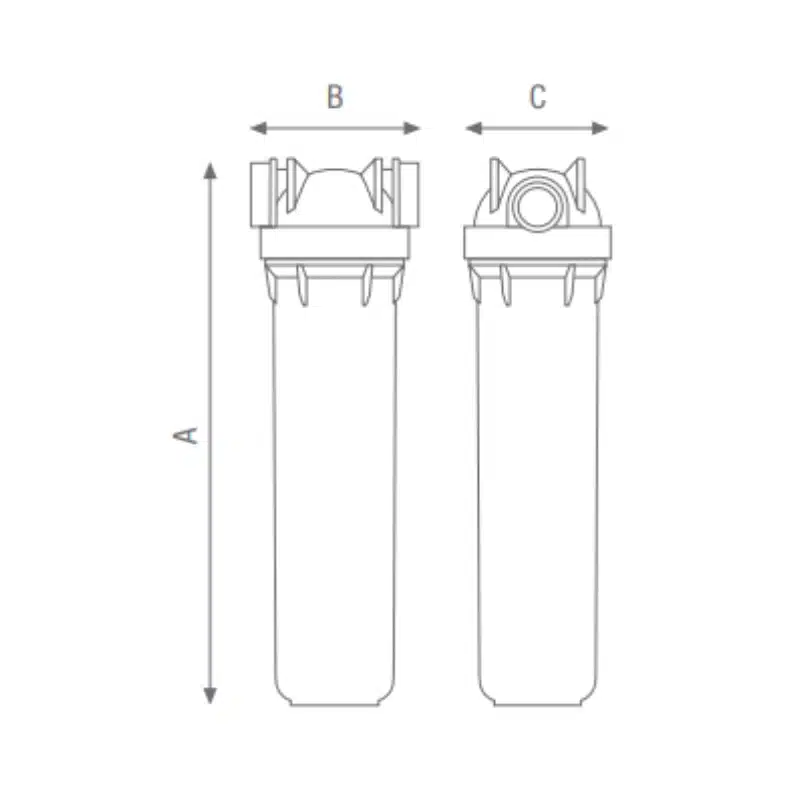

PART NUMBER	MODEL	SUITABLE CARTRIDGE	IN/OUT	MAX FLOW RATE	DIMENSIONS mm
ZA1801836	ROCK ScaleArmor™ System 1 IN	20”	1” plastic BSPP	2270 L/h	647 - 190 - 185
ZA1801834	ROCK ScaleArmor™ System 1 OT	20”	1” brass BSPP	2270 L/h	647 - 190 - 185
ZA1801838	ROCK ScaleArmor™ System 1 IN NPT	20”	1” brass BSPP	2270 L/h	647 - 190 - 185
