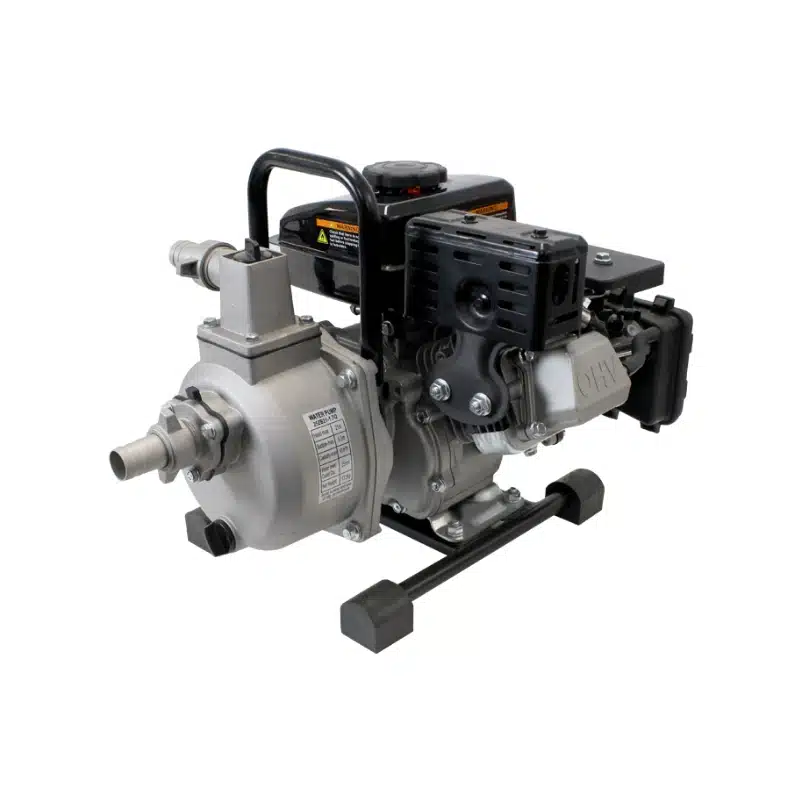

The MiniBlaze Single Impeller Petrol Pump is perfect in situations where there is isolation from electricity preventing electric powered pumps being used. Horizontal, single-stage, surface mounted centrifugal pump with closed impeller for pumping debris-free water coupled to a reliable 2.5HP (152F) engine.
| FLUID WATER | |
|---|---|
| Max. Water temperature: | 40°C |
| Min. Water temperature: | 1°C |
| Max. Ambient temperature: | 40°C* |
| ENGINE DATA | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type | Engine Model | Nominal kW @ 3600 RPM | Displacement CC | Fuel tank Capacity | Fuel | Fuel Consumption | Recommended Oil Type | Oil Capacity |
| MB25L | 148F-2F | 17 | 79.77 | 1.6 litres | Unleaded | 395 g/kW-h | SAE 10W-30 | 0.35 litres |

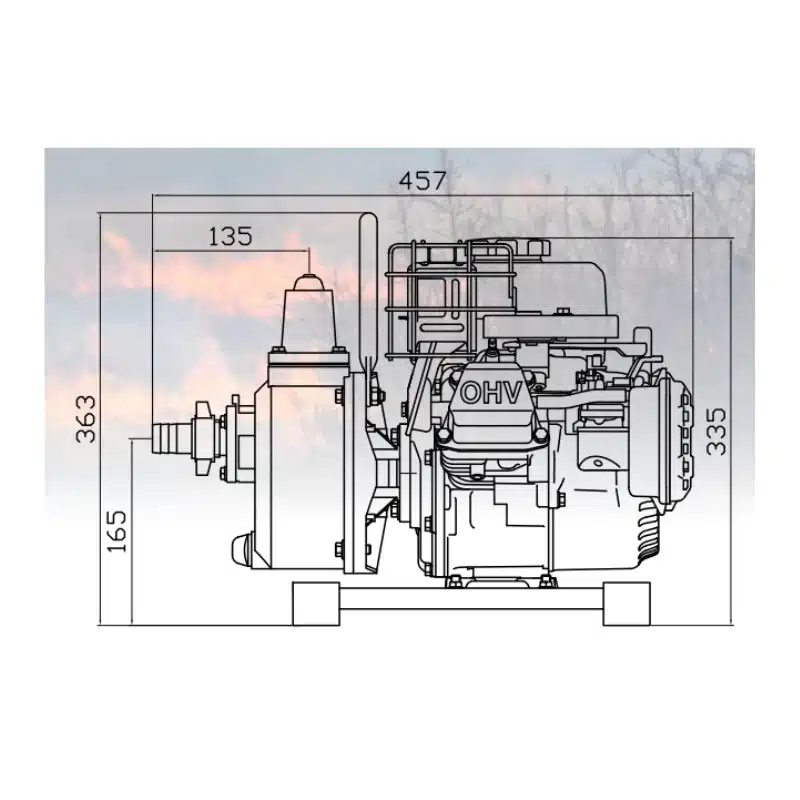

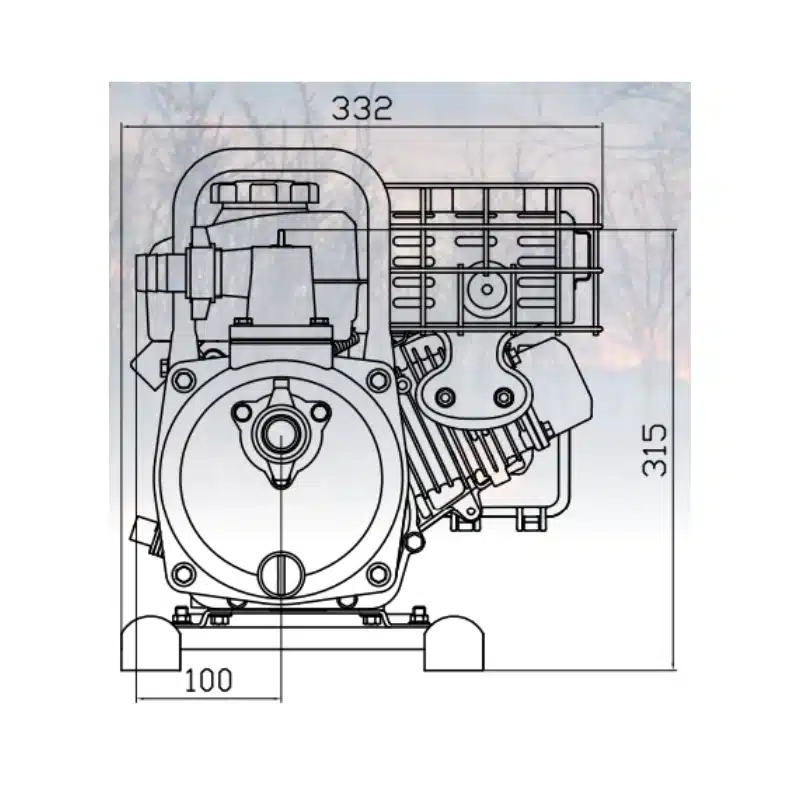

| DIMENSIONS | ||||||
|---|---|---|---|---|---|---|
| Type | Pump L x W x H | Weight Approx. | Inlet | Outlets | Packed L x W x H | Packed Weight |
| MB25L | 427 x 332 x 363 mm | 13.5kg | 1“ BSP (male) | 1“ BSP (male) | 445 x 340 x 365 mm | 15kg |

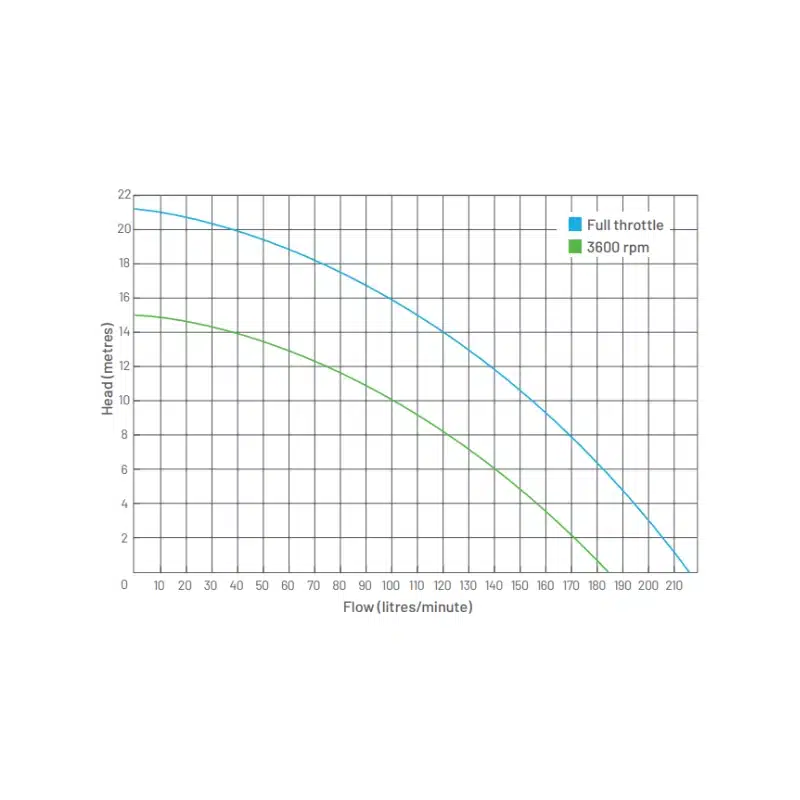

| PERFORMANCE | |||||||
|---|---|---|---|---|---|---|---|
| Type | P/No | Delivery Head [m] | 5 | 10 | 15 | 20 | 21 |
| MB25L | MB25L | Capacity [litres per minute] | 184 | 153 | 125 | 33 | 0 |
| CONSTRUCTION MATERIAL | |
|---|---|
| Component | Material |
| Pump casing | Powder coated Aluminium |
| Impeller/s | 30% Glass Filled Nylon |
| Diffuser | Aluminium |
| Priming/discharge caps | Polypropylene |
| Seal flexible bellows | Nitrile |
| Seal stationary face | Ceramic |
| Seal rotating face | Carbon |
| Seal spring | Stainless Steel |
| Motor shaft | Mild Steel |
| O‘Rings | Nitrile |
