Description

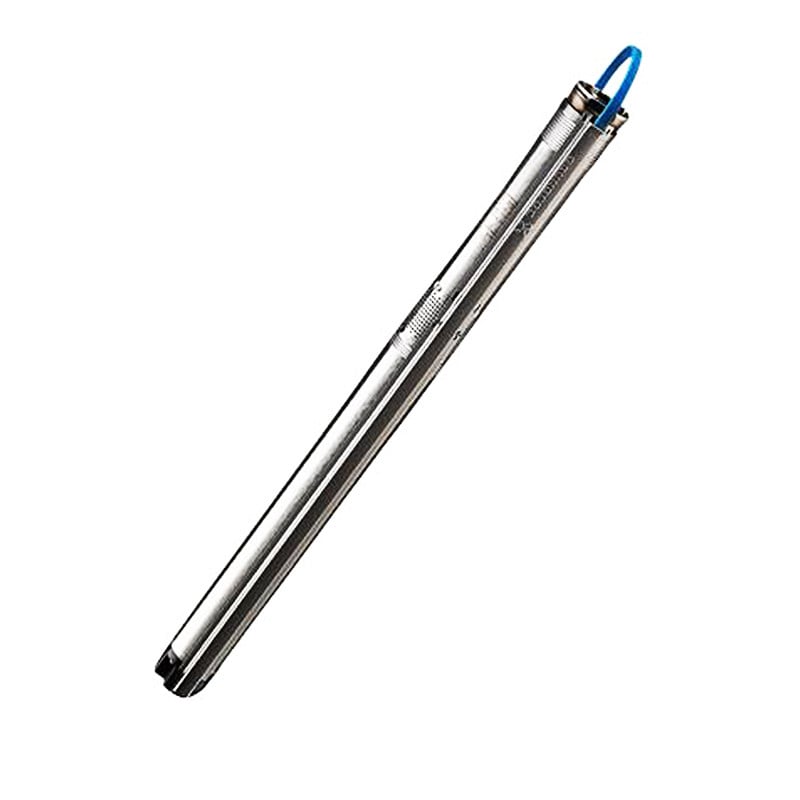

Grundfos SQ 3-95 N 7 Stage 1.55kW Submersible Groundwater Pump
Suitable for.
- Basement
- Garden
- Domestic groundwater intake
- Kitchen
- Domestic water pressure boosting
- Groundwater intake
At only 3” in diameter, the Grundfos SQ(E) submersible pump is extremely compact and ideal for small or restricted boreholes.
In addition to the features and benefits shared with the renowned SP submersible pump, the SQ(E) offers a number of motor protection and wear-reducing features that makes it the obvious choice for groundwater extraction at domestic or small waterworks, for irrigation systems, or for irrigation systems.
| ELECTRICAL DATA | |
|---|---|
| Motor type | MS3 |
| Power input - P1 | 2.05 kW |
| Rated power - P2 | 1.55 kW |
| Power (P2) required by pump | 1.52 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 200-240 V |
| Rated current | 11.2 A |
| Power factor | 1.00 |
| Rated speed | 10700 rpm |
| Starting method | direct-on-line |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | Y |
| Thermal protection | internal |
| Length of cable | 1.5 m |
| Motor No | 96160860 |
| MATERIALS | |
|---|---|
| Pump | Stainless steel DIN W.-Nr. 1.4401 AISI 316 |
| Impeller | Composite. ZYTEL 70G30 HSLR PA6.6-GF30 |
| Motor | Stainless steel, DIN W.-Nr. 1.4401, AISI 316 |
| INSTALLATION | |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 35 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| INSTALLATION | |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 35 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| TECHNICAL DATA | |
|---|---|
| Pump speed on which pump data are based | 10700 rpm |
| Rated flow | 3 m³/h |
| Rated head | 98 m |
| Stages | 7 |
| Approvals | CE, PCBC, RCM, EAC, CN Rohs Exempt, Morocco, UKCA, SEPRO |
| Curve tolerance | ISO9906:2012 3B |
| Pump No | 96080744 |
| Model | C |
| Valve | pump with built-in non-return valve |
