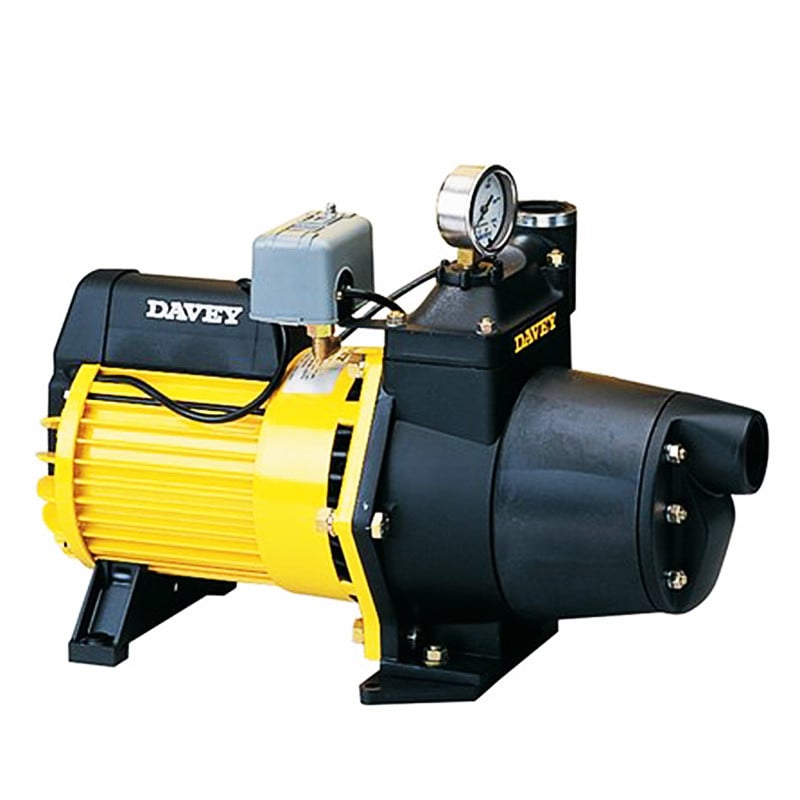

Davey 095S1 Shallow Well Jet Pump

WHY CHOOSE THE Davey Shallow Well Jet Pump?

• Davey LTEFC motor providing:
  • IP56 rating for long-term protection against vermin, dust and water
• Designed for both high ambient temperatures and extremes in supply voltage making them ideal for remote areas
• Pump unit features the highest corrosion resistance with outstanding pressure capacity due to:
  • unique composite casing design with high-strength aluminium outer casing and full internal casing made from precision moulded Rilsan.
  • mounting feet in high impact resistant corrosion-proof Xenoy.
• Versatile pump – convertible to match required duty
• Colour-coded jets and venturis for easy identification
• Easily converted to automatic operation
• 165S available with 3 phase motor
• Quick and easy installation
• Low maintenance
• Easy to service if required
• Oring seal hand-tightened priming plug for easy operation

Pump

• 1 Stage (Single Impeller)
• Jet assisted
• Marine grade aluminium pump body with Rilsan® lining
• Interchangeable jet/venturi kits to match pump performance to required duty
• Pressure switch fitted
• Pressure gauge supplied

Motor

• Davey manufactured.
• 2 pole, 2900rpm, 50Hz
• Class F insulation, IP56.
• Permanently split capacitor design for single phase motors.
• P2 metal jacket ‘fail safe’ capacitors.
• Double contact seal C3, high temperature greased bearings.
• Inbuilt thermal overload protection with automatic reset in all 1ø models.

Installation & Priming

• Installations with suction lift require a good quality foot valve to avoid loss of prime.
• To prime, fill pump body and suction line through priming plug hole and replace plug.Note:

Note: For complete details consult the installation and operating instructions
