Description

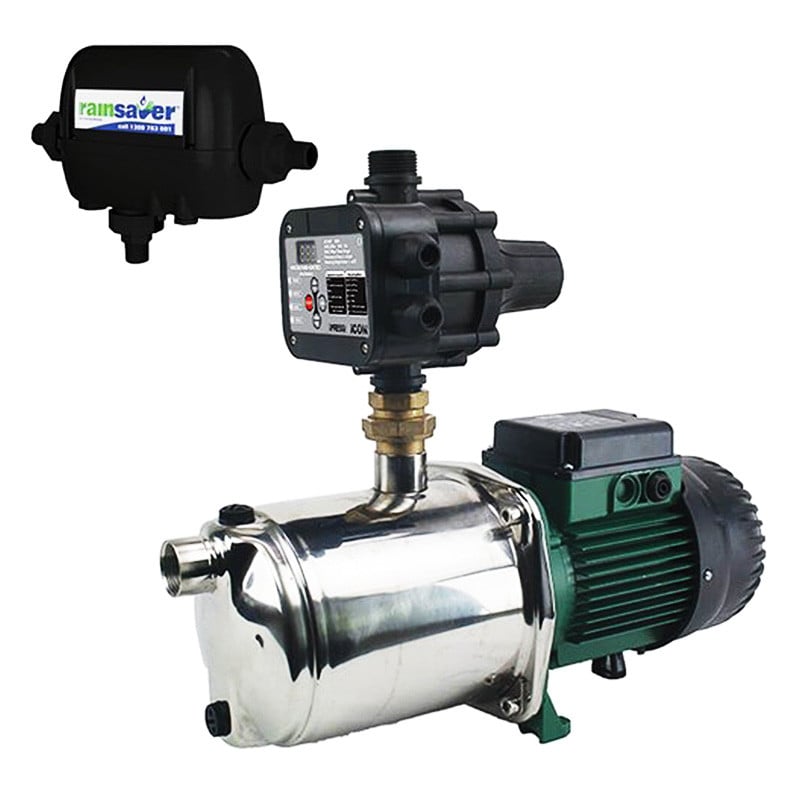

DAB Euroinox40/80MPCI Multistage Self Priming with iPress

Stainless Steel 550W Horizontal Multistage Electronic Self Priming Pump with Auto Restart

Applications

Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.

Constructional Features of the Pump

Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal. Rotor shaft in AISI 304 stainless steel. Impeller and diffuser bodies and diffuser in technopolymer. Stainless steel wear ring.

Constructional Features of the Motor

Asynchronous, continuous service motor. Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version. Overload protection to be provided by the user for the three-phase version.

Rainwater to Mains Changeover Device

Rainsaver MK4E Changeover Device.
2 Year Rainsaver MK4E Infield Warranty
12V Low voltage Float.
WaterMark approved for connection to all town water supplies.
Aesthetically designed and requires no weather proofing.
IP33

DAB EUROINOX 40/80MPCI MULTISTAGE SELF PRIMING
Brand	Bianco Rainsaver
Product Type	Surface Mounted Pump
Suitable For	Rainwater Harvesting
Bar	5.7 Bar
Approval	Approved For Drinking Water
Flow Range Category	a. 0 - 99 L/min
Float	float Included
kPa	577 kPa
Max Head (m)	57 m
Taps	8 Taps
Volts	240 V
Watts	550 W
