Description

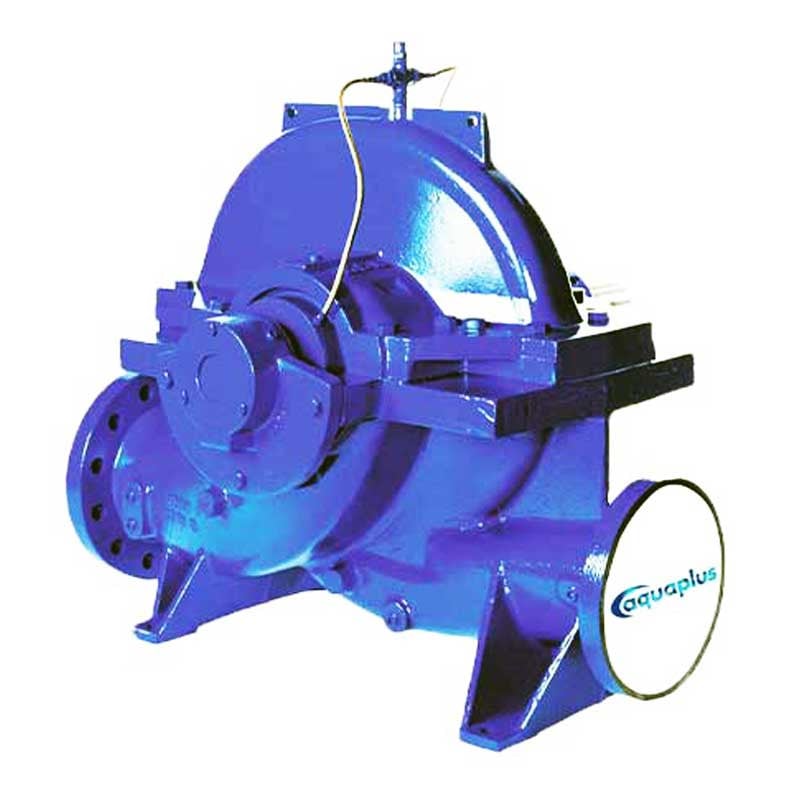

Aquaplus ISB Series Split Case Pumps

Aquaplus ISB Series Split Case Pumps feature high operating reliability, low maintenance costs and service-friendly design. They are primarily used for handling pure, raw and waste water.

Applications

For handling pure, raw and waste water as well as seawater in: Waterworks, Irrigation and drainage pumping stations, Power stations, Industrial water supply, Fire fighting systems, Marine and offshore engineering, General applications in the petrochemical industry, Seawater desalination.

High operating reliability – Thanks to the double-entry impeller (compensating the axial forces) the load on the generously dimensioned, pre-loaded, maintenance-free bearings is minimal.
Low maintenance costs – The combination of solid bearing brackets, a short and rigid shaft, and pre-loaded bearings guarantees low vibrations and long operating lives of bearings, seals and coupling. Corrosion and abrasion resistant materials ensure top service lives for shaft protecting sleeves, impeller/casing wear rings, and impeller.
Service-friendly design – The self-centering upper part of the casing and the pre-loaded rotor enable cover and rotor assembly without any adjustments. For maintenance, the cover’s hexagon head bolts are completely removed from the casing. The casing split flange can therefore be easily and thoroughly cleaned, and the inside of the pump is freely accessible.
Reliable sealing – The sold casing split flange at the upper and lower casing part ensures reliable and trouble-free sealing of the upper and lower casing halves.
